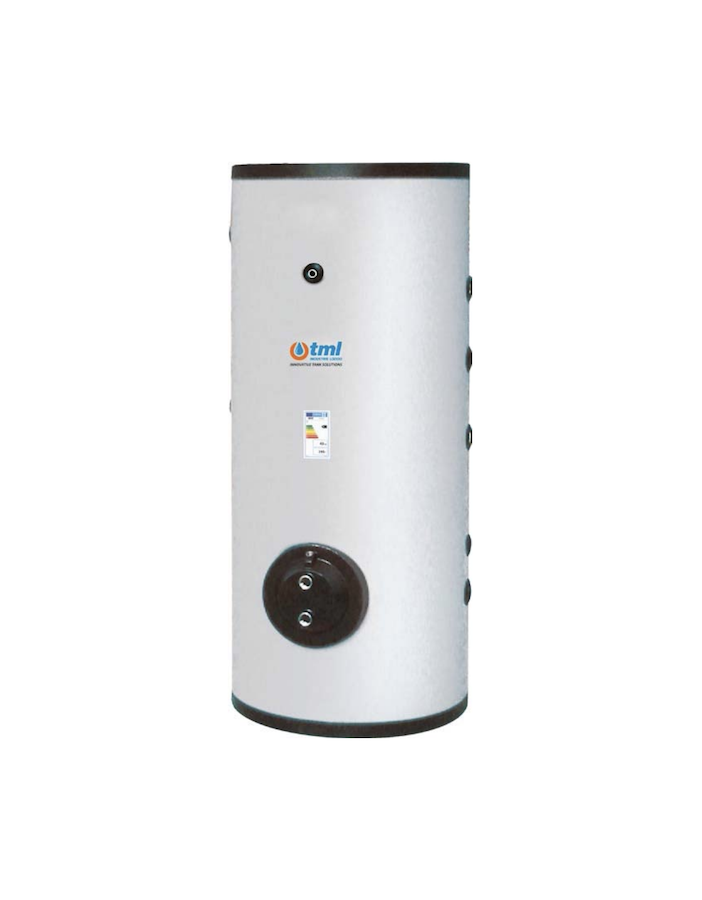

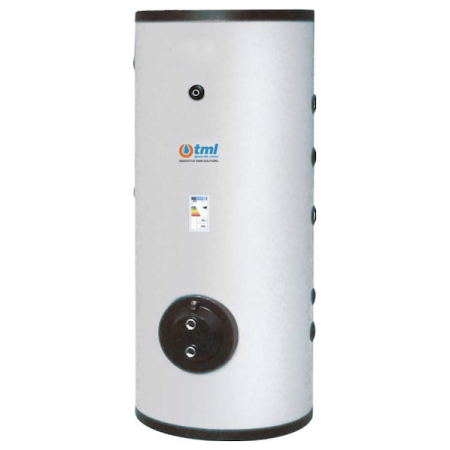

Tml BV1VS1200500R Kettle lt. 2000 porcelain glass with a heat exchanger for steam pressure max 12 bar/191.7 °C rigid insulation
TML BV1VS1200500R 500 L DHW heater - Vitreous enamel steel S235Jr - 1 removable heat exchanger - Max pressure 12 bar vapore - Ø 650mm H 1660mm 104kg - COIB.RIGIDA - 5-year warranty.
Description
TML BV1VS1200500R 500Lt - Technical Data Sheet
Technical Features
- Tank material: Vitreous enamel steel S235Jr
- Internal treatment: Food-grade inorganic enamel DIN 4753.3
- Max tank pressure / temperature: 8 bar / 95°C
- Cathodic protection: Magnesium anode (electronic anode optional)
- Exchanger material: Inox tube bundle for 12 bar steam with return head
- Max exchanger pressure: 12 bar vapore
- No. of exchangers: 1
- Nominal capacity: 500 Lt
- Dimensions: Ø 650 mm - Height 1660 mm - Weight 104 kg
- Insulation: Rigid insulation: polyurethane+PVC up to 2000L (B3) / polyester+polystyrene+PVC from 2500L (B2)
- Warranty: 5 years tank / 2 years exchanger
Standards
- PED 2014/68/UE - Art.4 Par.3
- D.M. 6 Aprile 2004 N.174
- ErP 2009/125/CE
Optional Accessories
Impressed current electronic anode, control unit, thermostat, thermometer, 1.5" electric heater element
