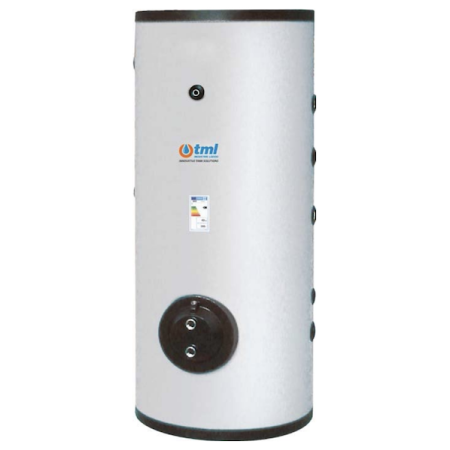

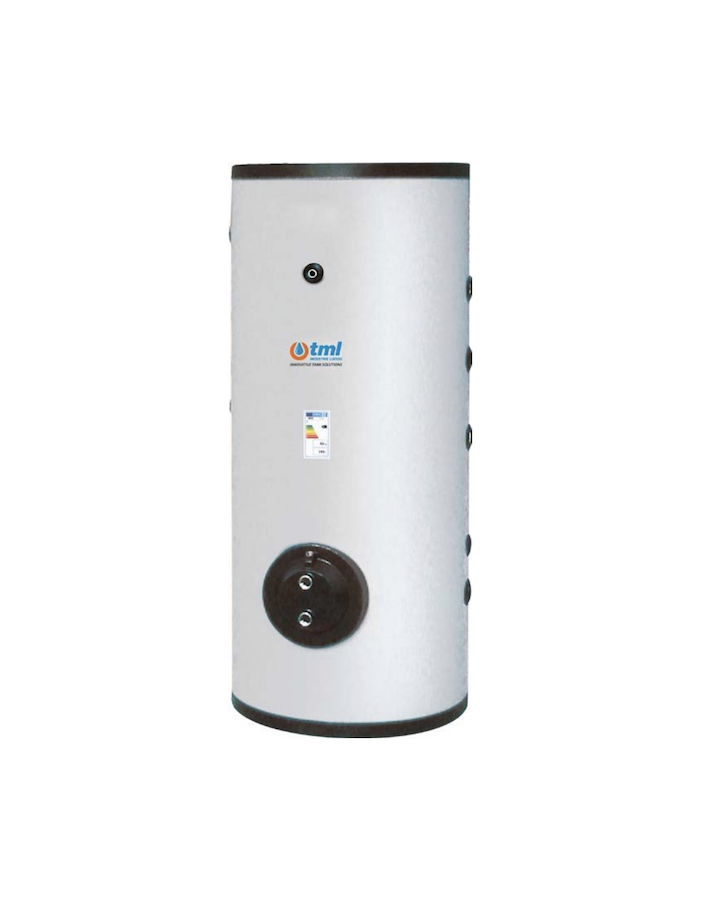

Tml BV1VS1201000F Kettle lt. 1000 porcelain glass with a heat exchanger for steam pressure max 12 bar/191.7 °C flex insulation
TML BV1VS1201000F 1000 L DHW heater - Vitreous enamel steel S235Jr - 1 removable heat exchanger - Max pressure 12 bar vapore - Ø 790mm H 2110mm 203kg - COIB.FLEX - 5-year warranty.
Description
TML BV1VS1201000F 1000Lt - Technical Data Sheet
Technical Features
- Tank material: Vitreous enamel steel S235Jr
- Internal treatment: Food-grade inorganic enamel DIN 4753.3
- Max tank pressure / temperature: 8 bar / 95°C
- Cathodic protection: Magnesium anode (electronic anode optional)
- Exchanger material: Inox tube bundle for 12 bar steam with return head
- Max exchanger pressure: 12 bar vapore
- No. of exchangers: 1
- Nominal capacity: 1000 Lt
- Dimensions: Ø 790 mm - Height 2110 mm - Weight 203 kg
- Insulation: Flexible polyester + PVC insulation (class B2 DIN 4102)
- Warranty: 5 years tank / 2 years exchanger
Standards
- PED 2014/68/UE - Art.4 Par.3
- D.M. 6 Aprile 2004 N.174
- ErP 2009/125/CE
Optional Accessories
Impressed current electronic anode, control unit, thermostat, thermometer, 1.5" electric heater element
