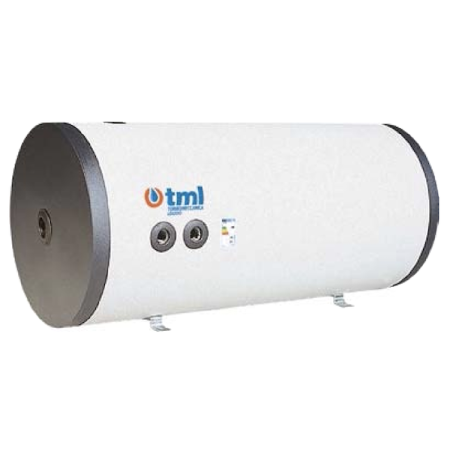

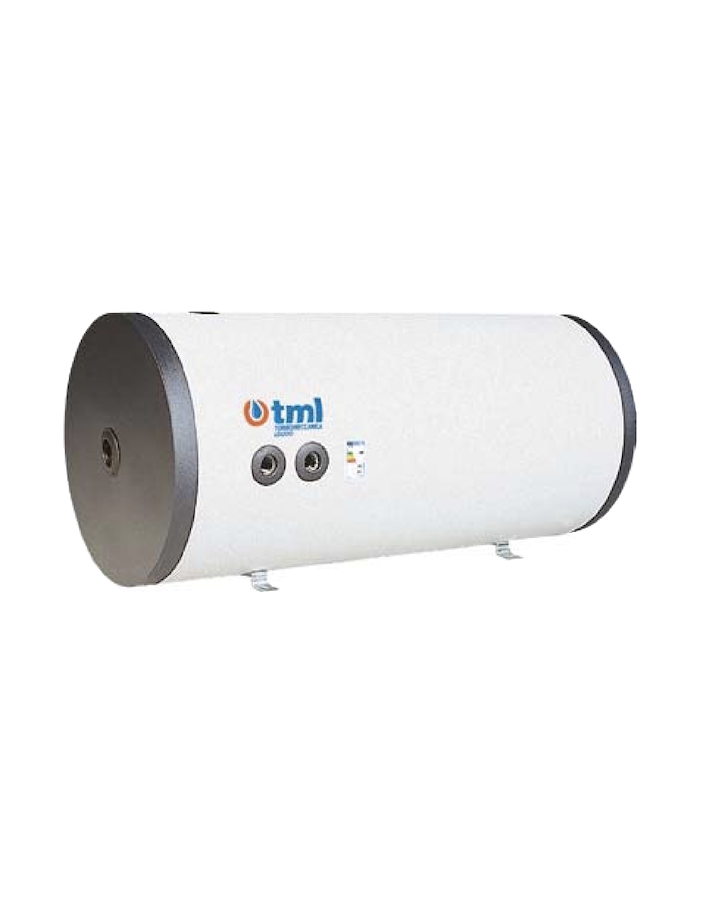

Tml BMV00100R Wall-mounted kettle lt. 100 porcelain glass with a fixed coil heat exchanger rigid insulation
TML BMV 100L vitreous enamel wall-mounted water heater with fixed coil heat exchanger. Capacity 100 L, dimensions 400x870mm, weight 35 kg.
- Material: Acciaio al carbonio S235Jr vetroporcellanato
- Heat exchanger: 0,75 m²
- Max pressure: 8 bar / 95°C
- Insulation: Poliuretano rigido 25mm + PVC
- Warranty: 5 anni
Description
TML BMV 100L Vitreous Enamel Wall-Mounted Water Heater – BMV00100R
The TML BMV 100L is a sanitary storage unit in carbon steel S235Jr with vitreous enamel coating (DIN 4753.3), fitted with an AISI 316L stainless steel fixed coil heat exchanger and magnesium anode cathodic protection.
Technical Specifications
| Parameter | Value |
|---|---|
| Product code | BMV00100R |
| Actual capacity | 100 litres |
| Material | Acciaio al carbonio S235Jr vetroporcellanato |
| Heat exchanger surface | 0,75 m² |
| Max pressure/temperature | 8 bar / 95°C |
| Dimensions (Ø x H) | 400x870mm |
| Weight | 35 kg |
| Insulation | Poliuretano rigido 25mm + PVC |
| Cathodic protection | Magnesium anode |
| Warranty | 5 anni |
Applicable standards
Directive 2014/68/EU (PED) Art. 4 Par. 3, D.M. 6 April 2004 No.174, Directive 2009/125/EC.
