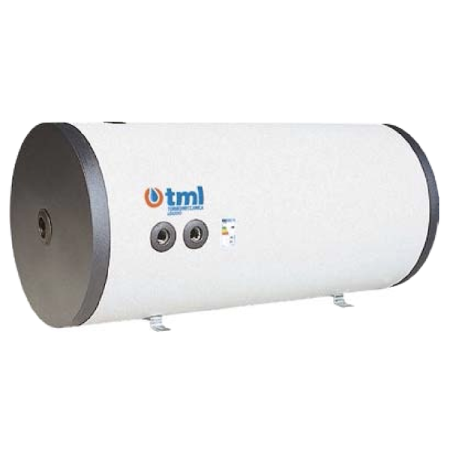

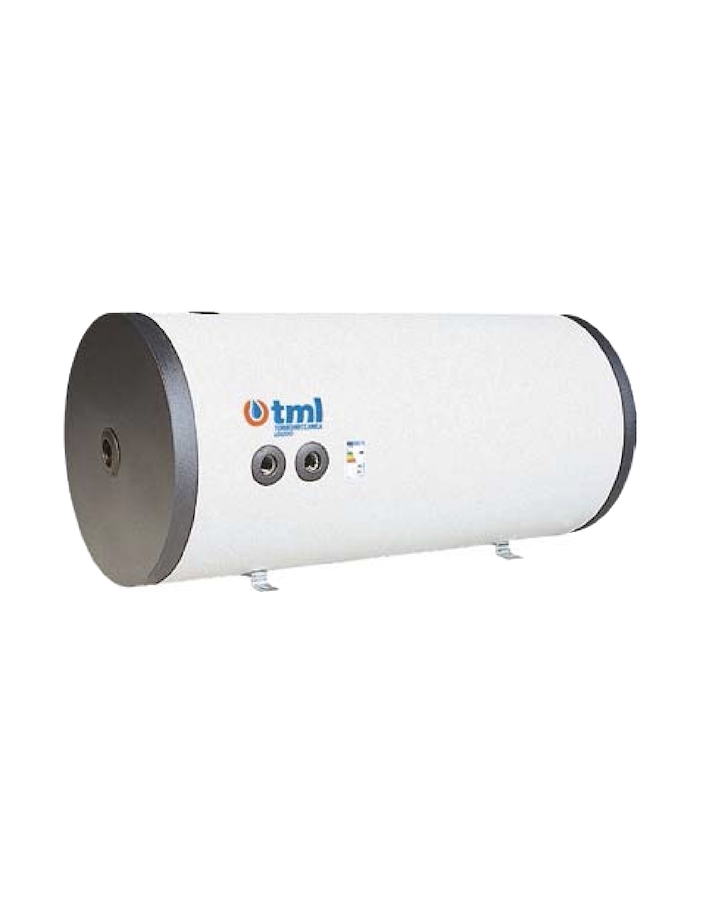

Tml BMV00200R Wall-mounted kettle lt. 200 porcelain glass with a fixed coil heat exchanger rigid insulation
TML BMV 200L vitreous enamel wall-mounted water heater with fixed coil heat exchanger. Capacity 200 L, dimensions 450x1255mm, weight 57 kg.
- Material: Acciaio al carbonio S235Jr vetroporcellanato
- Heat exchanger: 1,60 m²
- Max pressure: 8 bar / 95°C
- Insulation: Poliuretano rigido 25mm + PVC
- Warranty: 5 anni
Description
TML BMV 200L Vitreous Enamel Wall-Mounted Water Heater – BMV00200R
The TML BMV 200L is a sanitary storage unit in carbon steel S235Jr with vitreous enamel coating (DIN 4753.3), fitted with an AISI 316L stainless steel fixed coil heat exchanger and magnesium anode cathodic protection.
Technical Specifications
| Parameter | Value |
|---|---|
| Product code | BMV00200R |
| Actual capacity | 200 litres |
| Material | Acciaio al carbonio S235Jr vetroporcellanato |
| Heat exchanger surface | 1,60 m² |
| Max pressure/temperature | 8 bar / 95°C |
| Dimensions (Ø x H) | 450x1255mm |
| Weight | 57 kg |
| Insulation | Poliuretano rigido 25mm + PVC |
| Cathodic protection | Magnesium anode |
| Warranty | 5 anni |
Applicable standards
Directive 2014/68/EU (PED) Art. 4 Par. 3, D.M. 6 April 2004 No.174, Directive 2009/125/EC.
