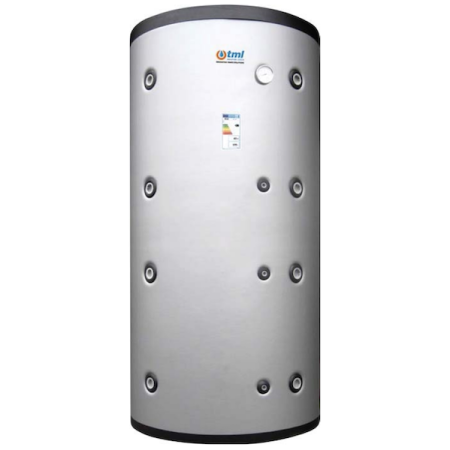

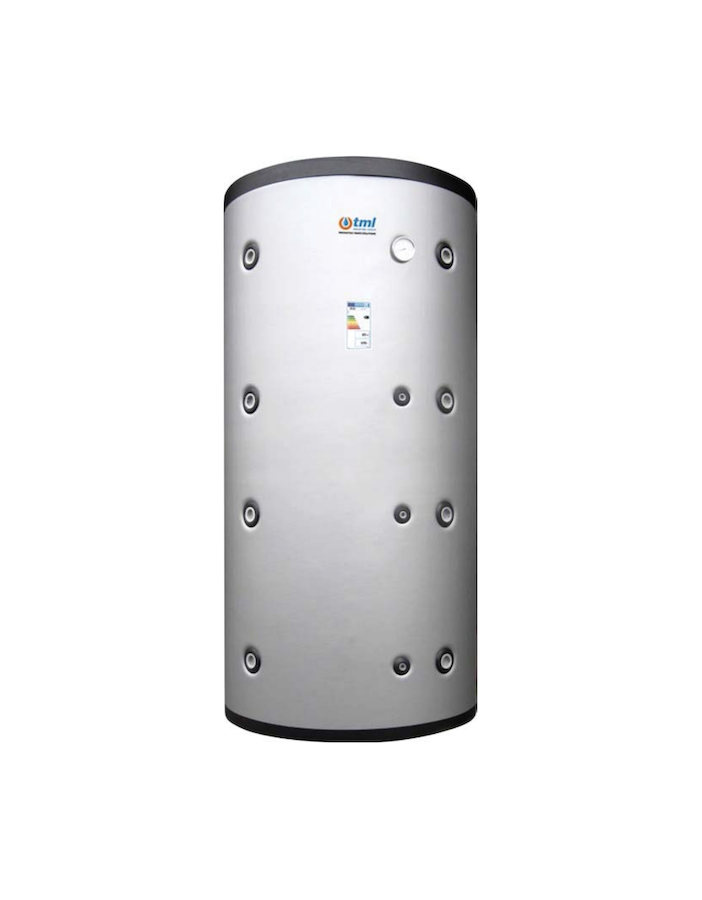

Tml PFS00300R Pufferspeicher storage tank lt. 300 carbon steel with a fixed coil max pressure 4 bar/95 °C rigid insulation
TML PFS 300L buffer with single coil – heat exchanger surface 1,40 m², pressure 4 bar / 95°C, weight 70 kg, dimensions 500x1595mm.
- Capacity: 300 L
- Coil: 1,40 m²
- Pressure: 4 bar / 95°C
- Insulation: Poliuretano rigido 50mm + PVC
- Dimensions: 500x1595mm
- Weight: 70 kg
- Warranty: 5 anni
Description
TML PFS 300L Buffer with Single Coil – PFS00300R
The TML PFS 300L features a single fixed spiral coil (1,40 m², 10 bar / 95°C). Ideal for biomass boiler + solar thermal multi-source systems.
Technical Specifications
| Parameter | Value |
|---|---|
| Product code | PFS00300R |
| Actual capacity | 300 litres |
| Coil surface | 1,40 m² |
| Max coil pressure | 10 bar / 95°C |
| Max tank pressure | 4 bar / 95°C |
| Material | Carbon steel S235Jr |
| Dimensions (Ø x H) | 500x1595mm |
| Weight | 70 kg |
| Insulation | Poliuretano rigido 50mm + PVC |
| Warranty | 5 anni |
Applicable standards
Directive 2014/68/EU (PED) Art. 4 Par. 3, Directive 2009/125/EC.
