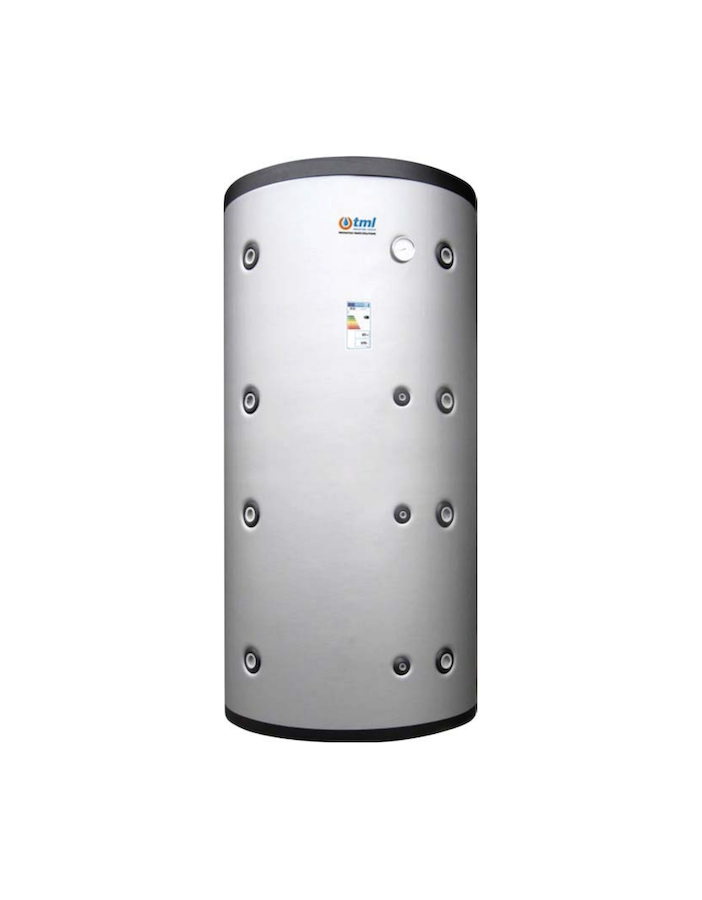

Tml PFS01000R Pufferspeicher storage tank lt. 1000 carbon steel with a fixed coil max pressure 4 bar/95 °C rigid insulation
TML PFS 1000L buffer with single coil – heat exchanger surface 3,50 m², pressure 4 bar / 95°C, weight 183 kg, dimensions 790x2110mm.
- Capacity: 1000 L
- Coil: 3,50 m²
- Pressure: 4 bar / 95°C
- Insulation: Poliuretano rigido 100mm + PVC
- Dimensions: 790x2110mm
- Weight: 183 kg
- Warranty: 5 anni
Description
TML PFS 1000L Buffer with Single Coil – PFS01000R
The TML PFS 1000L features a single fixed spiral coil (3,50 m², 10 bar / 95°C). Ideal for biomass boiler + solar thermal multi-source systems.
Technical Specifications
| Parameter | Value |
|---|---|
| Product code | PFS01000R |
| Actual capacity | 1000 litres |
| Coil surface | 3,50 m² |
| Max coil pressure | 10 bar / 95°C |
| Max tank pressure | 4 bar / 95°C |
| Material | Carbon steel S235Jr |
| Dimensions (Ø x H) | 790x2110mm |
| Weight | 183 kg |
| Insulation | Poliuretano rigido 100mm + PVC |
| Warranty | 5 anni |
Applicable standards
Directive 2014/68/EU (PED) Art. 4 Par. 3, Directive 2009/125/EC.
