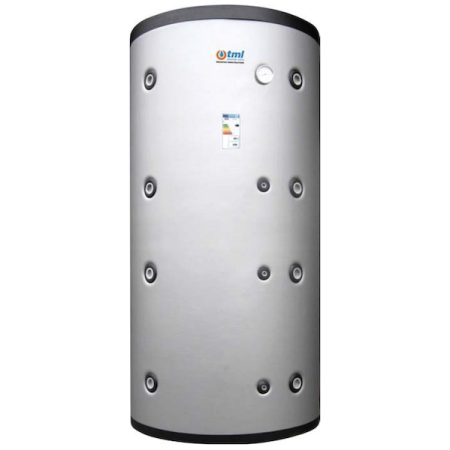

Tml PFSS00300R Pufferspeicher Thermal Accumulation lt. 300 in carbon steel with two fixed coils max pressure 4 bar/95 °C rigid insulation
TML PFSS 300L dual coil buffer tank – two coil heat exchangers (1,40 m² inf. + 1,10 m² sup.). Pressure 4 bar / 95°C, weight 70 kg, dim. 500x1595mm.
- Capacity: 300 L
- Coils: 1,40 m² inf. + 1,10 m² sup.
- Pressure: 4 bar / 95°C
- Insulation: Poliuretano rigido 50mm + PVC
- Dimensions: 500x1595mm
- Weight: 70 kg
- Warranty: 5 anni
Description
TML PFSS 300L Dual Coil Buffer Tank – PFSS00300R
The TML PFSS 300L features two fixed spiral coil heat exchangers (1,40 m² inf. + 1,10 m² sup.). Multi-source solution integrating biomass, solar, and an integration boiler.
Technical Specifications
| Parameter | Value |
|---|---|
| Product code | PFSS00300R |
| Actual capacity | 300 litres |
| Coils (surface) | 1,40 m² inf. + 1,10 m² sup. |
| Max coil pressure | 10 bar / 95°C |
| Max tank pressure | 4 bar / 95°C |
| Material | Carbon steel S235Jr |
| Dimensions (Ø x H) | 500x1595mm |
| Weight | 70 kg |
| Insulation | Poliuretano rigido 50mm + PVC |
| Warranty | 5 anni |
Applicable standards
Directive 2014/68/EU (PED) Art. 4 Par. 3, Directive 2009/125/EC.
