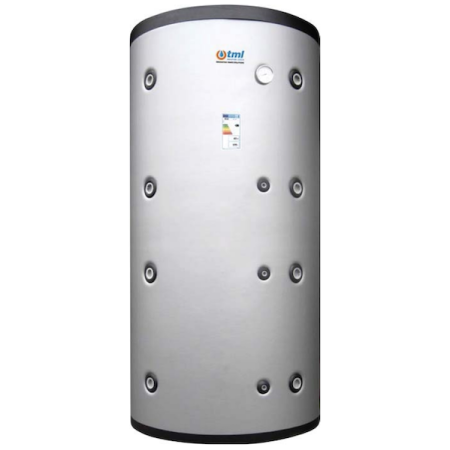

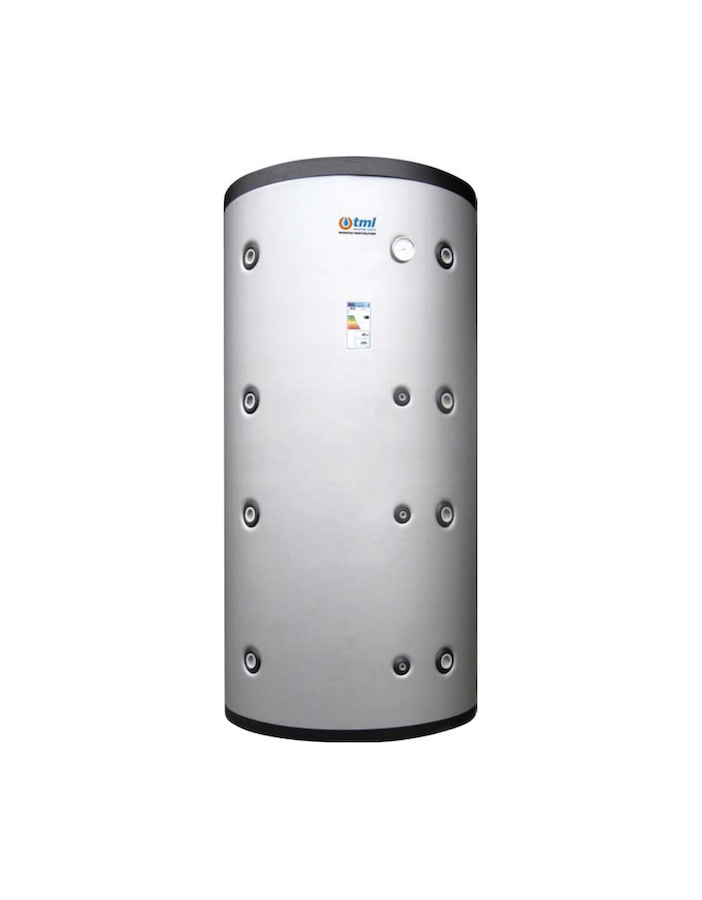

Tml PFSS02000R Pufferspeicher storage tank lt. 2000 in carbon steel with two fixed coils max pressure 4 bar/95 °C rigid insulation
TML PFSS 2000L dual coil buffer tank – two coil heat exchangers (4,80 m² inf. + 3,80 m² sup.). Pressure 4 bar / 95°C, weight 301 kg, dim. 1100x2380mm.
- Capacity: 2000 L
- Coils: 4,80 m² inf. + 3,80 m² sup.
- Pressure: 4 bar / 95°C
- Insulation: Poliuretano rigido 100mm + PVC
- Dimensions: 1100x2380mm
- Weight: 301 kg
- Warranty: 5 anni
Description
TML PFSS 2000L Dual Coil Buffer Tank – PFSS02000R
The TML PFSS 2000L features two fixed spiral coil heat exchangers (4,80 m² inf. + 3,80 m² sup.). Multi-source solution integrating biomass, solar, and an integration boiler.
Technical Specifications
| Parameter | Value |
|---|---|
| Product code | PFSS02000R |
| Actual capacity | 2000 litres |
| Coils (surface) | 4,80 m² inf. + 3,80 m² sup. |
| Max coil pressure | 10 bar / 95°C |
| Max tank pressure | 4 bar / 95°C |
| Material | Carbon steel S235Jr |
| Dimensions (Ø x H) | 1100x2380mm |
| Weight | 301 kg |
| Insulation | Poliuretano rigido 100mm + PVC |
| Warranty | 5 anni |
Applicable standards
Directive 2014/68/EU (PED) Art. 4 Par. 3, Directive 2009/125/EC.
Product Details
Tap to zoom
