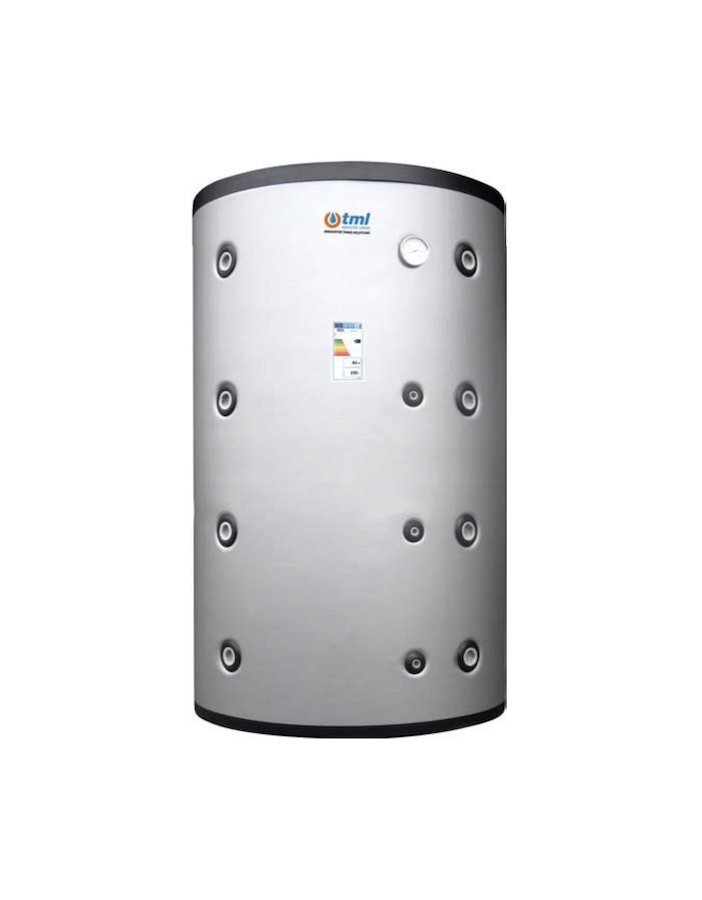

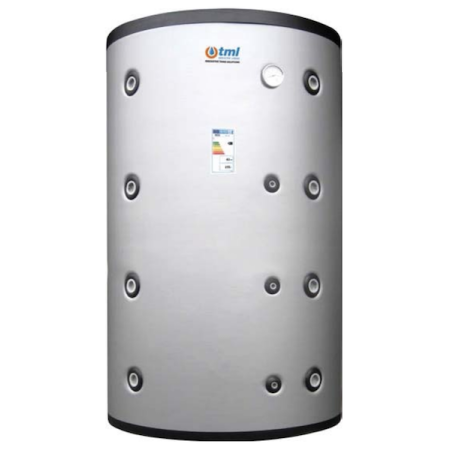

Tml PUKSS02000F Pufferspeicher Low Size storage tank lt. 2000 carbon steel with two fixed coils flex insulation
TML PUKSS 2000L Low Size buffer with dual coil – two coil exchangers (4,80 m² inf. + 3,80 m² sup.), pressure 4 bar / 95°C, weight 342 kg.
- Capacity: 2000 L
- Coils: 4,80 m² inf. + 3,80 m² sup.
- Pressure: 4 bar / 95°C
- Insulation: Poliuretano flessibile 130mm + PVC
- Dimensions: 1200x2225mm
- Weight: 342 kg
- Warranty: 5 anni
Description
TML PUKSS 2000L Low-Height Dual Coil Buffer – PUKSS02000F
The TML PUKSS 2000L is a reduced-height buffer with two fixed spiral coil exchangers (4,80 m² inf. + 3,80 m² sup.). Multi-source solution for biomass + solar or biomass + integration boiler.
Technical Specifications
| Parameter | Value |
|---|---|
| Product code | PUKSS02000F |
| Actual capacity | 2000 litres |
| Coils (surface) | 4,80 m² inf. + 3,80 m² sup. |
| Max coil pressure | 10 bar / 95°C |
| Max tank pressure | 4 bar / 95°C |
| Material | Carbon steel S235Jr |
| Dimensions (Ø x H) | 1200x2225mm |
| Weight | 342 kg |
| Insulation | Poliuretano flessibile 130mm + PVC |
| Warranty | 5 anni |
Applicable standards
Directive 2014/68/EU (PED) Art. 4 Par. 3, Directive 2009/125/EC.
