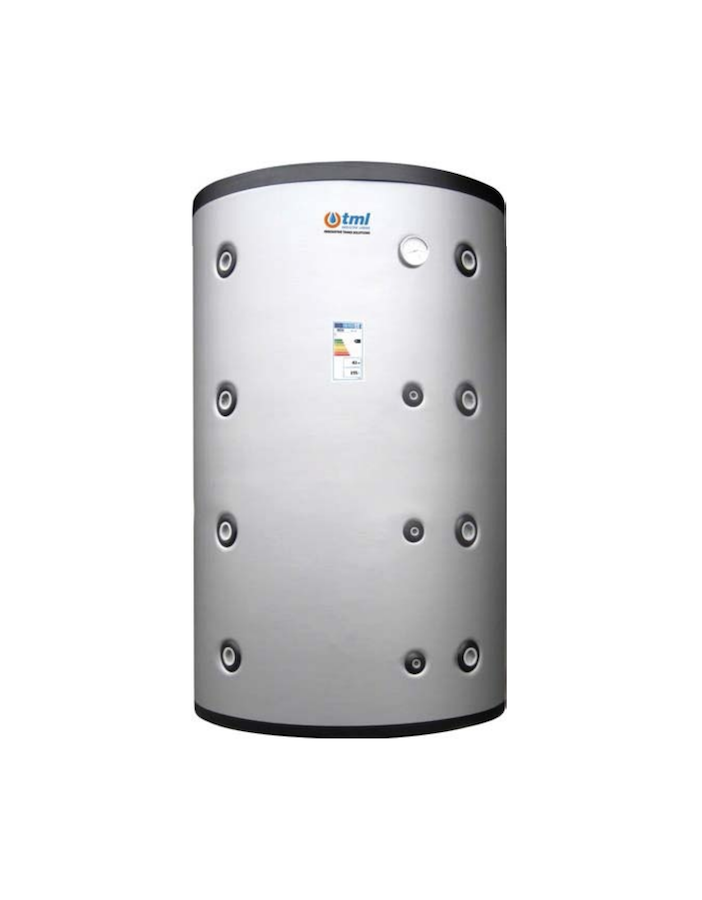

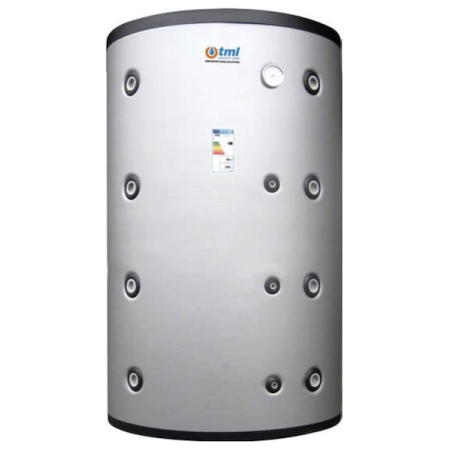

Tml PUKSS03000F Pufferspeicher Low Size Thermostorage Tank lt. 3000 carbon steel with two fixed coils flex insulation
TML PUKSS 3000L Low Size buffer with dual coil – two coil exchangers (6,00 m² inf. + 3,80 m² sup.), pressure 4 bar / 95°C, weight 435 kg.
- Capacity: 3000 L
- Coils: 6,00 m² inf. + 3,80 m² sup.
- Pressure: 4 bar / 95°C
- Insulation: Poliuretano flessibile 100mm + PVC
- Dimensions: 1400x2320mm
- Weight: 435 kg
- Warranty: 5 anni
Description
TML PUKSS 3000L Low-Height Dual Coil Buffer – PUKSS03000F
The TML PUKSS 3000L is a reduced-height buffer with two fixed spiral coil exchangers (6,00 m² inf. + 3,80 m² sup.). Multi-source solution for biomass + solar or biomass + integration boiler.
Technical Specifications
| Parameter | Value |
|---|---|
| Product code | PUKSS03000F |
| Actual capacity | 3000 litres |
| Coils (surface) | 6,00 m² inf. + 3,80 m² sup. |
| Max coil pressure | 10 bar / 95°C |
| Max tank pressure | 4 bar / 95°C |
| Material | Carbon steel S235Jr |
| Dimensions (Ø x H) | 1400x2320mm |
| Weight | 435 kg |
| Insulation | Poliuretano flessibile 100mm + PVC |
| Warranty | 5 anni |
Applicable standards
Directive 2014/68/EU (PED) Art. 4 Par. 3, Directive 2009/125/EC.
