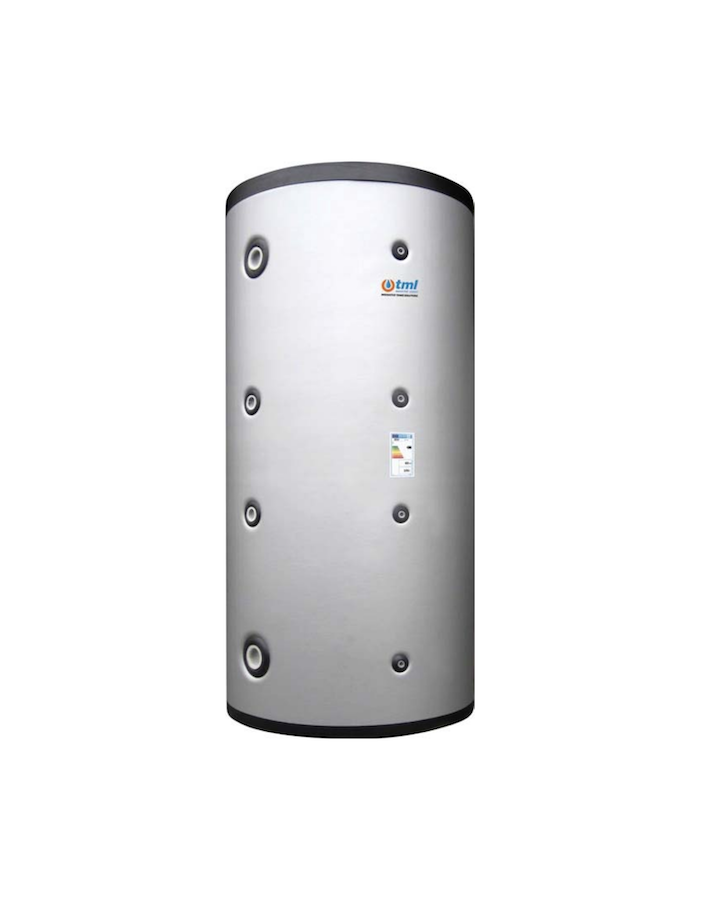

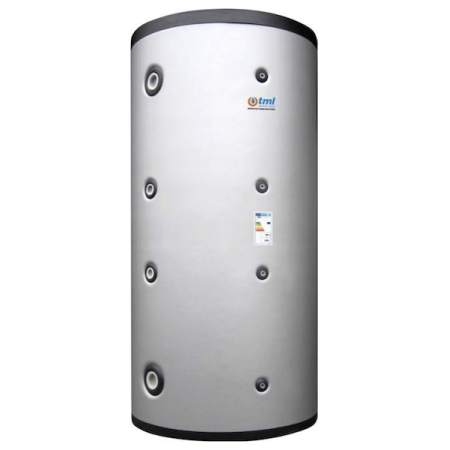

Tml ACF02000PF Hot/cold storage lt. 2000 Thermal flywheel for heat pumps Flex anti-condensation insulation
TML ACF 1950L hot/cold buffer tank for reversible heat pump systems. Functions as thermal flywheel and hydraulic separator.
- Capacity: 1950 L
- Material: Carbon steel S235Jr
- Max pressure/temp: 6 bar / -10 ÷ +95°C
- Insulation: PEXL 10mm anticondensa + poliestere 130mm + PVC
- Weight: 212 kg
- Dimensions: Ø1100x2395mm
- ErP Class: C
- Warranty: 5 years
Description
TML ACF 1950L Hot/Cold Buffer Tank – Code ACF02000PF
The TML ACF 1950L is a thermal buffer tank in carbon steel S235Jr, externally coated with anti-rust primer and industrial enamel, designed for hot and cold technical water storage in systems with reversible heat pumps. It also functions as a hydraulic separator, decoupling the heat source flow from the distribution circuit. Large-diameter connections allow high flow rates.
Technical Specifications
| Parameter | Value |
|---|---|
| Product code | ACF02000PF |
| Actual capacity | 1950 L |
| Material | Carbon steel S235Jr |
| Internal treatment | Bare steel |
| External treatment | Anti-rust + industrial enamel |
| Max pressure / temperature | 6 bar / -10 ÷ +95°C |
| Insulation | PEXL 10mm anticondensa + poliestere 130mm + PVC |
| Dimensions (Ø × H) | Ø1100x2395mm |
| Weight | 212 kg |
| ErP Class | C |
| Warranty | 5 years |
Standards
Directive 2014/68/EU (PED) Art. 4 Par. 3 – Directive 2009/125/EC (Energy related Products)
