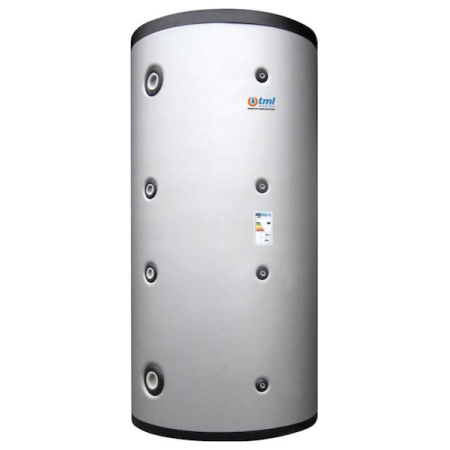

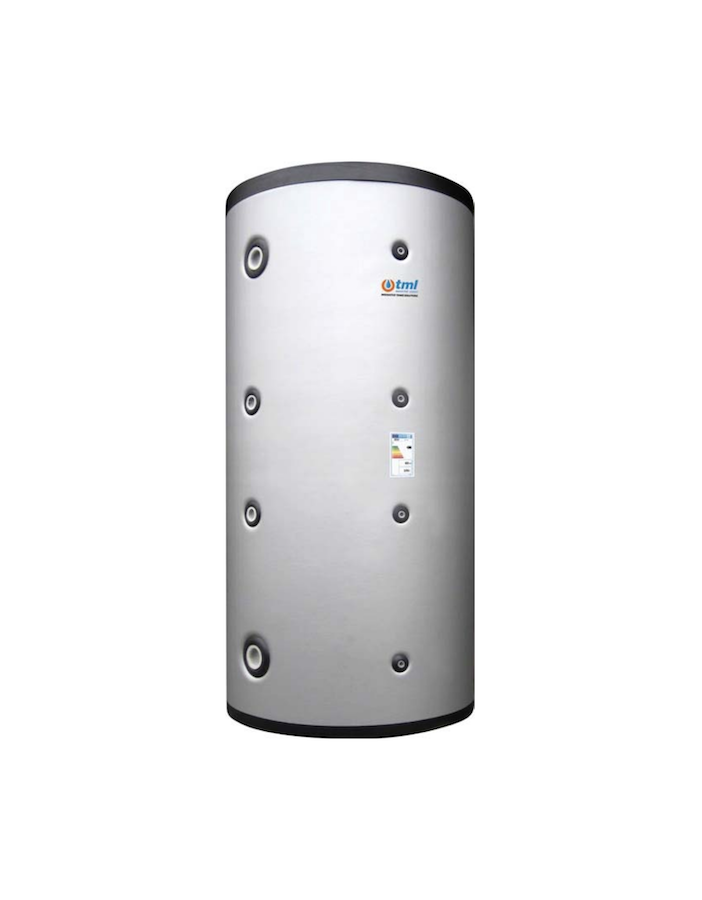

Tml ACF03000PF Hot/cold storage lt. 3000 Thermal flywheel for heat pumps Flex anti-condensation insulation
TML ACF 2957.5L hot/cold buffer tank for reversible heat pump systems. Functions as thermal flywheel and hydraulic separator.
- Capacity: 2957.5 L
- Material: Carbon steel S235Jr
- Max pressure/temp: 6 bar / -10 ÷ +95°C
- Insulation: PEXL 10mm anticondensa + poliestere 100mm + PVC
- Weight: 428 kg
- Dimensions: Ø1250x2795mm
- ErP Class: -
- Warranty: 5 years
Description
TML ACF 2957.5L Hot/Cold Buffer Tank – Code ACF03000PF
The TML ACF 2957.5L is a thermal buffer tank in carbon steel S235Jr, externally coated with anti-rust primer and industrial enamel, designed for hot and cold technical water storage in systems with reversible heat pumps. It also functions as a hydraulic separator, decoupling the heat source flow from the distribution circuit. Large-diameter connections allow high flow rates.
Technical Specifications
| Parameter | Value |
|---|---|
| Product code | ACF03000PF |
| Actual capacity | 2957.5 L |
| Material | Carbon steel S235Jr |
| Internal treatment | Bare steel |
| External treatment | Anti-rust + industrial enamel |
| Max pressure / temperature | 6 bar / -10 ÷ +95°C |
| Insulation | PEXL 10mm anticondensa + poliestere 100mm + PVC |
| Dimensions (Ø × H) | Ø1250x2795mm |
| Weight | 428 kg |
| ErP Class | - |
| Warranty | 5 years |
Standards
Directive 2014/68/EU (PED) Art. 4 Par. 3 – Directive 2009/125/EC (Energy related Products)
