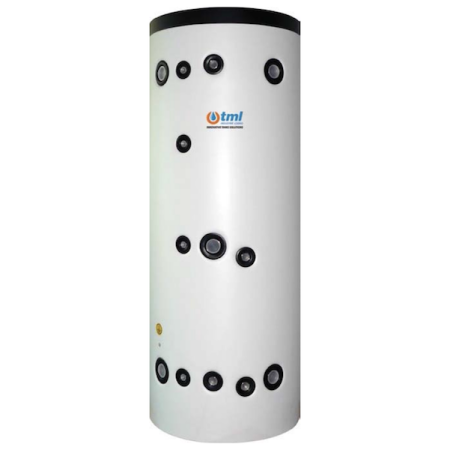

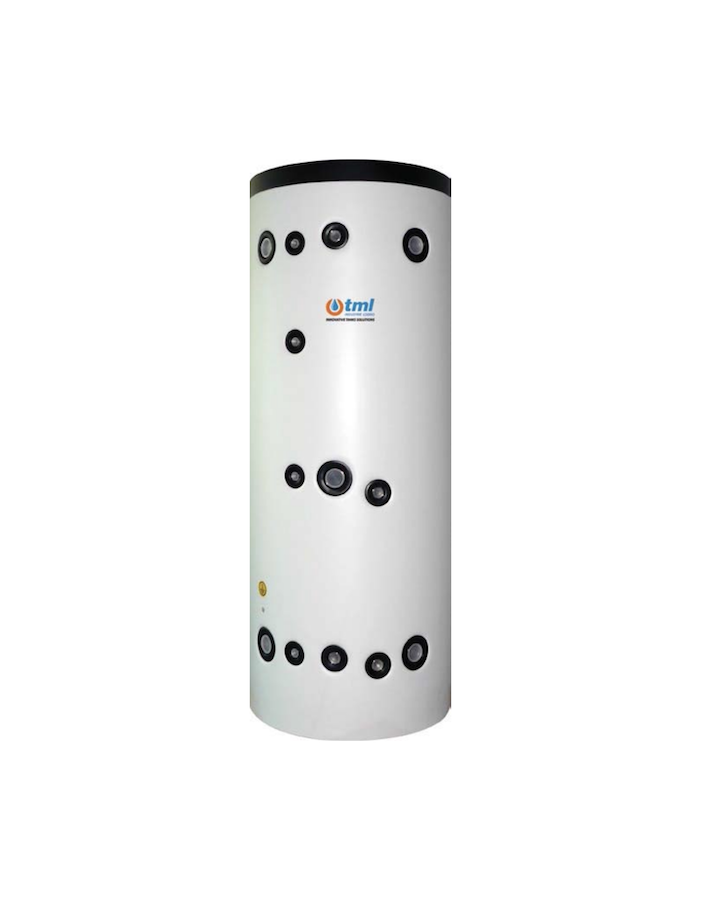

Tml SM0HP00400R Smartwarm HP combined storage tank lt. 400 carbon steel rigid insulation
TML SM0HP 400L high-performance heat pump combined buffer with AISI 316L corrugated coil DHW heat exchanger.
- Capacity: 400 L
- DHW heat exchanger: 5,0 m²
- Max pressure: 3 bar / 95°C
- Insulation: Poliuretano rigido 50mm + PVC
- Dimensions: 600x1610mm
- Weight: 104 kg
- Warranty: 5 anni
Description
TML SM0HP 400L Heat Pump Buffer Tank – SM0HP00400R
The Smartwarm HP 400L is a primary water buffer for instantaneous DHW production via a high-efficiency AISI 316L corrugated coil heat exchanger. The high exchange surface-to-volume ratio makes it ideal for low-temperature heat pumps.
Technical Specifications
| Parameter | Value |
|---|---|
| Product code | SM0HP00400R |
| Actual capacity | 400 litres |
| Tank material | Carbon steel S235Jr |
| Heat exchanger material | Stainless steel AISI 316L (1.4404) |
| Heat exchanger type | Corrugated tube |
| Heat exchanger surface | 5,0 m² |
| Max tank pressure | 3 bar / 95°C |
| Max exchanger pressure | 6 bar / 95°C |
| Dimensions (Ø x H) | 600x1610mm |
| Weight | 104 kg |
| Insulation | Poliuretano rigido 50mm + PVC |
| ErP class | B |
| Warranty | 5 anni |
DHW Performance
Heat exchanger power: 45 kW – Continuous DHW flow: 1105 L/h (average temp 65°C, DHW 10-45°C).
Applicable standards
Directive 2014/68/EU (PED), D.M. 6 April 2004 No.174, Directive 2009/125/EC.
