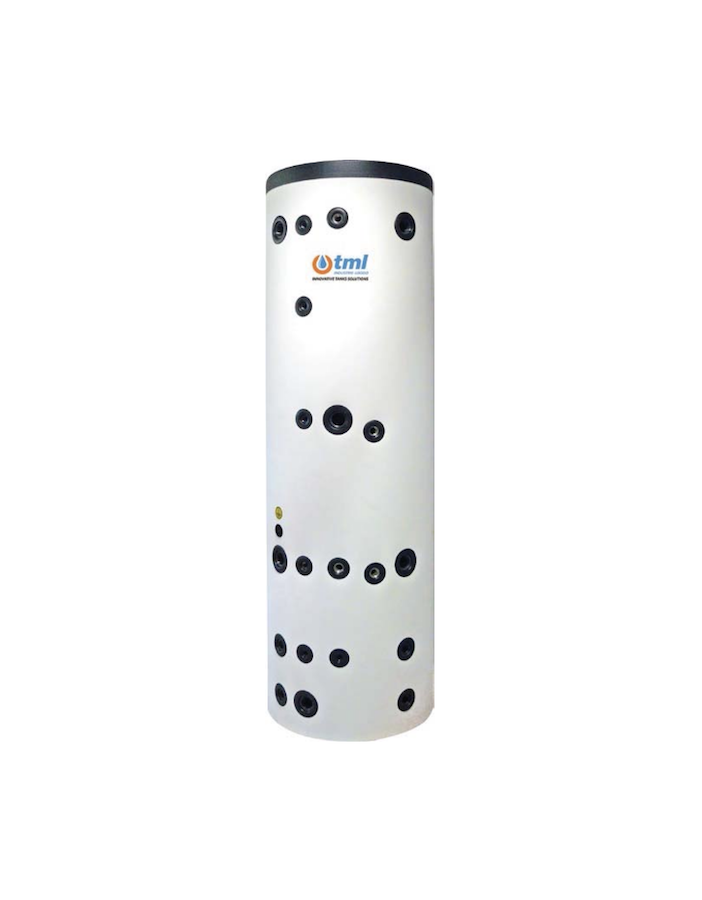

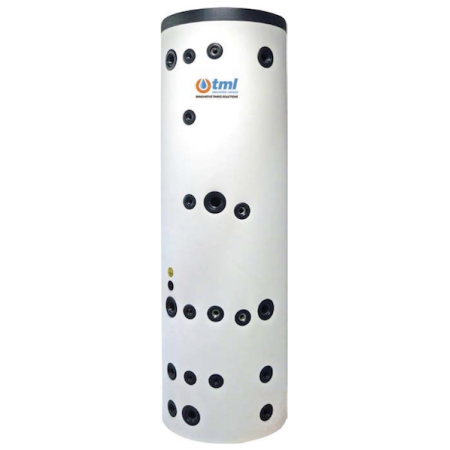

Tml TW1HP00400R Combined Thermal Storage Tank Twin HP lt. 400 carbon steel rigid insulation
TML TW1HP 400L Twin HP 2-in-1 buffer: upper DHW tank with AISI 316L coil + lower inertial puffer, integration exchanger included. Optimised for hydronic heat pumps.
- Total capacity: 400 L
- DHW heat exchanger: 5,0 m² san. + 1,4 m² int.
- Max pressure: 3 bar / 95°C
- Insulation: Poliuretano rigido 50mm + PVC
- Dimensions: 600x2020mm
- Weight: 154 kg
- Warranty: 5 anni
Description
TML TW1HP 400L Twin HP 2-in-1 Heat Pump Buffer – TW1HP00400R
The Twin HP 400L consists of two vessels in one body: the upper tank is a primary water accumulator for instantaneous DHW production via an AISI 316L corrugated coil; the lower tank is an inertial buffer for the heating circuit. Space-saving solution for heat pump installations.
Technical Specifications
| Parameter | Value |
|---|---|
| Product code | TW1HP00400R |
| Total actual capacity | 400 litres |
| DHW heat exchanger surface | 5,0 m² san. + 1,4 m² int. |
| Max tank pressure | 3 bar / 95°C |
| Max exchanger pressure | 6 bar / 95°C |
| Dimensions (Ø x H) | 600x2020mm |
| Weight | 154 kg |
| Insulation | Poliuretano rigido 50mm + PVC |
| ErP class | B |
| Warranty | 5 anni |
Applicable standards
Directive 2014/68/EU (PED), D.M. 6 April 2004 No.174, Directive 2009/125/EC.
