Tml SM1X01500F Solarmax combined storage tank lt. 1500 in AISI 316L stainless steel with a fixed coil with flex insulation

Combined Thermal Storage Tank Solarmax 1472 Litres – Instant DHW Production – SM1X01500F

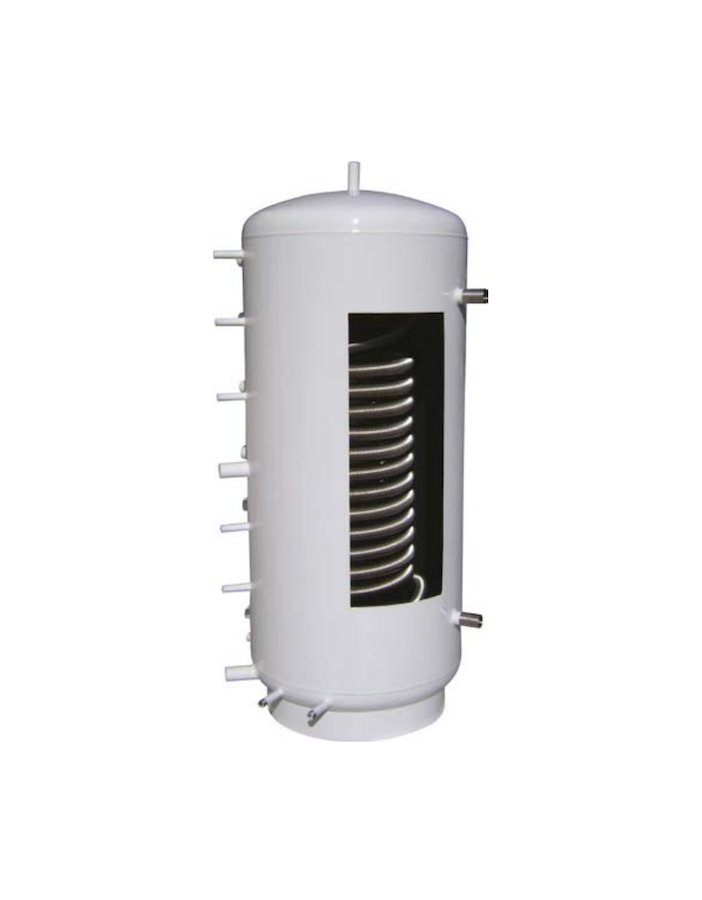

The Solarmax SM1X01500F is a combined thermal storage tank with a capacity of 1472 litres, designed by TML Industrie Loddo for instant domestic hot water (DHW) production via a high-efficiency corrugated stainless steel AISI 316L heat exchanger, combined with heating water storage in a carbon steel buffer. The system is configured with 1 lower primary heat exchanger finned copper 5.0 m². The patented thermal flow director uses natural convective motion: the finned copper solar coil heats the fluid at the bottom of the tank, which is channelled upward to meet the corrugated DHW heat exchanger, transferring heat in an orderly, continuous cycle. This allows immediate use of initial solar energy gains without waiting for full tank stratification.

Full Technical Specifications – SM1X01500F

• External buffer (heating storage):
• Material: Carbon steel S235Jr – bare inside – anti-rust coating outside
• Max pressure / Max temperature: 3 bar / 95°C
• Buffer capacity: 1472 litres
• DHW heat exchanger (instant production):
• Material: AISI 316L stainless steel (1.4404) – pickled and passivated
• Type: Fixed corrugated tube with high exchange surface
• Exchange surface: 10.0 m²
• Max pressure / Max temperature: 6 bar / 95°C
• Thermal output at 65°C primary: 113.4 kW
• DHW available (65°C, 20 L/min, fully heated tank): 941 litres
• Lower primary heat exchanger (solar): finned copper – flat-ring spiral coil – 5.0 m² – max 10 bar / 95°C
• Insulation: flexible polyester + PVC 130 mm (Fire class B2 DIN 4102)
• ErP: Class C – Heat loss: 168.2 W
• Dimensions (insulated body): Ø 1000 mm × Height 2145 mm
• External diameter (insulation): Ø 1200/1260 mm
• Tilt diagonal R: 2145 mm
• Indicative weight: ~263 kg
• Electric heater connection: 1½" fitting (not included)
• Warranty: 5 years

Instant DHW Production – Corrugated AISI 316L Heat Exchanger

Unlike "tank in tank" systems, the Solarmax produces DHW instantaneously: mains water flows through the corrugated AISI 316L heat exchanger in contact with the hot buffer water and is heated without intermediate storage. The corrugated tube geometry maximises turbulence and exchange surface, delivering high thermal outputs: up to 113.4 kW at 65°C primary. The system requires no internal DHW storage and guarantees high hygiene standards through on-demand production with no water stagnation.

Multi-Energy Compatibility and Applications

The SM1X01500F is compatible with multiple heat sources: solar thermal collectors (lower heat exchanger in finned copper), biomass boiler (dedicated connections), backup boiler and heat generator at high or low temperature. The large 1472-litre capacity ensures adequate thermal storage for large residential buildings, villas and commercial premises. Buffer fluid must operate in a closed loop (oxygen-free).

Standards and Certifications

The SM1X01500F complies with: PED Directive 2014/68/EU (Art. 4 Par. 3), Italian D.M. 6 April 2004 N.174, ErP Directive 2009/125/EC.
