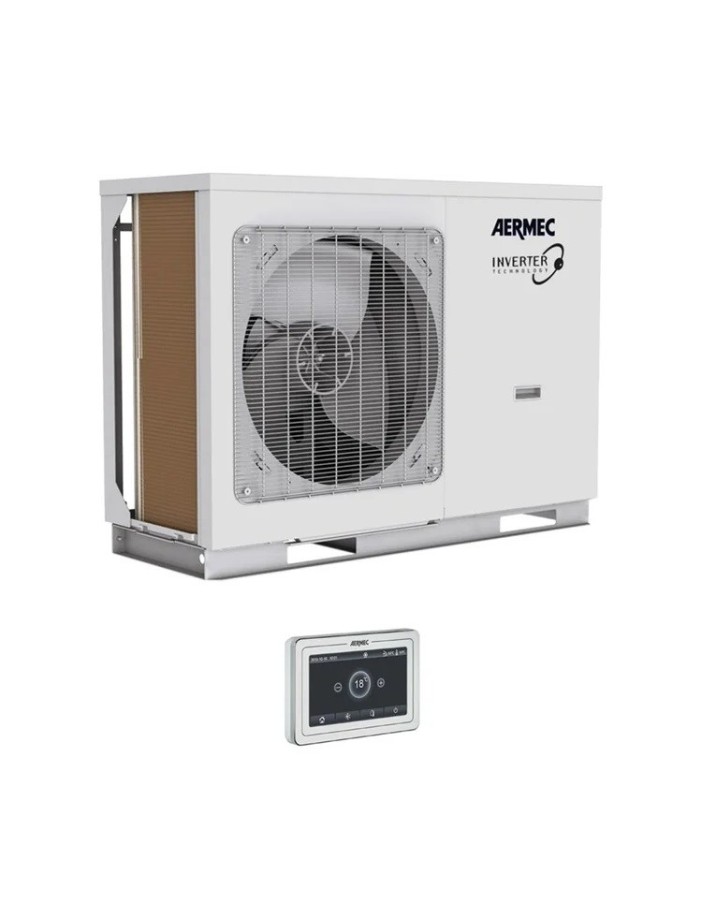

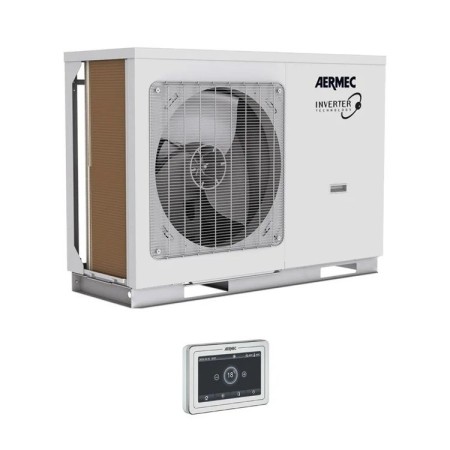

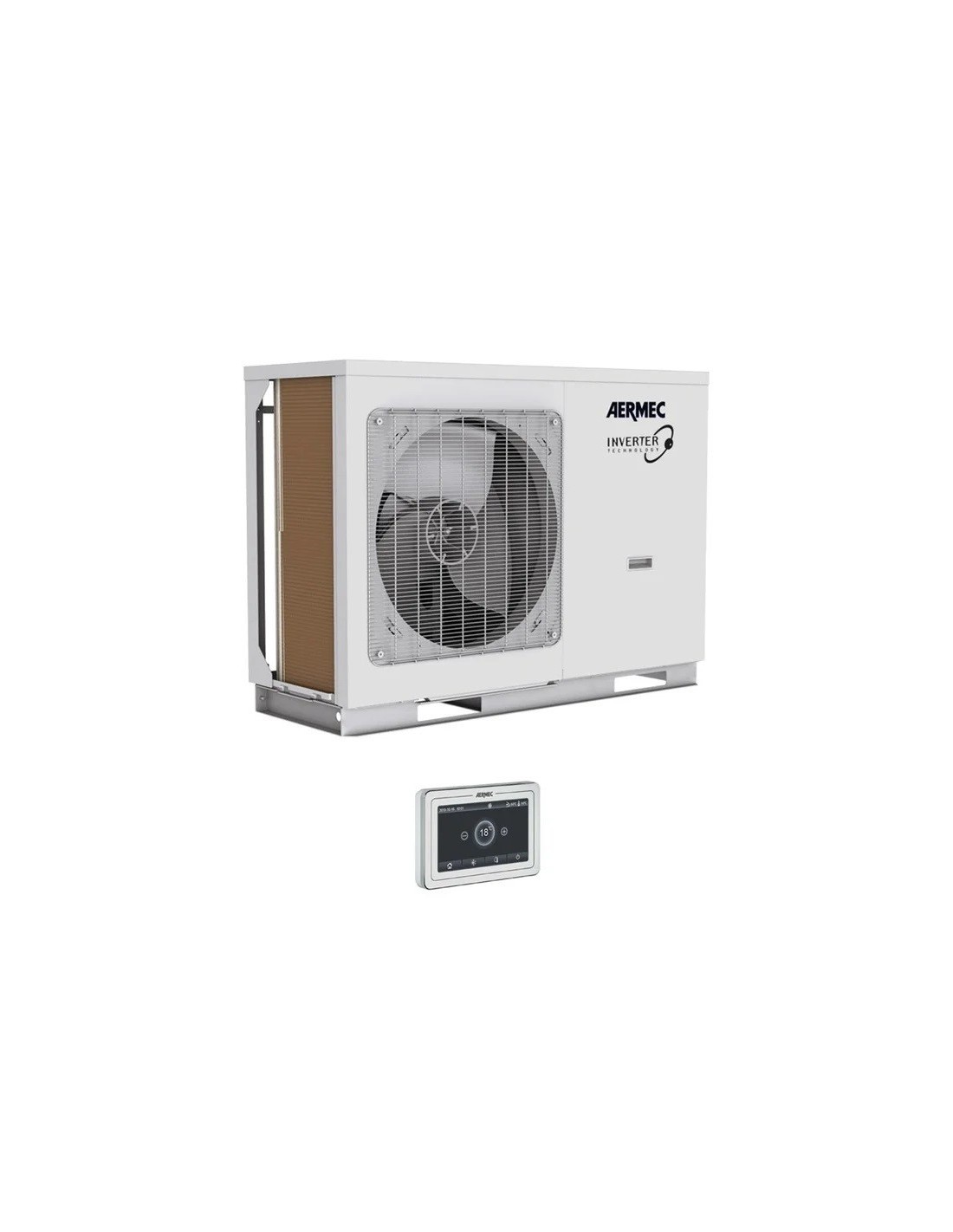

Aermec HMI101T three-phase inverter reversible air/water heat pump

Aermec HMI101T – Reversible Air-to-Water Heat Pump

The Aermec HMI101T heat pump, part of the HMI_1 Series, is a high-efficiency HVAC solution for heating, cooling and domestic hot water (DHW) production. Designed for new builds and renovations as a modern, cost-effective alternative to conventional boilers, it delivers outstanding performance down to -25°C outdoor temperature.

Energy Performance

• Cooling capacity: 9.1 kW – EER: 3.25
• Heating capacity: 10.2 kW – COP: 3.92
• SCOP (seasonal heating): 3.58
• SEER (seasonal cooling): 4.86
• Energy efficiency class: A++
• Maximum water temperature in heating: 65°C
• Max DHW temperature: up to 80°C with electric heater

Key Technical Features

• Eco-friendly refrigerant R32 (GWP 675) – Charge: 1.6 kg
• DC Inverter Rotary compressor with economizer circuit
• Electronic expansion valve
• Low-noise DC brushless axial fans: 56 dB(A) at 1 m
• Power supply: 400V 3N ~ 50Hz – Three-phase
• Integrated inverter pump, plate heat exchanger, expansion vessel, safety valve, flow switch
• Anti-freeze base electric heater
• Special Golden Fin coil coating (epoxy anti-corrosion)

Control Features

• Multilingual touch screen control panel
• Built-in Wi-Fi – EWPE Smart App (iOS/Android)
• Weather Dependent Mode for climate-based regulation
• Quick Hot Water function for fast DHW
• Programmable anti-Legionella cycle (max 70°C)
• Programmable Quiet mode
• Compatible with VMF-E5 / VMF-E6 supervisors via VMF-485LINK
• ModBus RS485 compatible

Dimensions and Weight

• Dimensions (H×W×D): 1206 × 445 × 880 mm
• Net weight: 128.0 kg

Ideal Applications

The Aermec HMI101T is ideal for underfloor heating, fan coil units and traditional radiators. Compatible with Aermec DHW storage tanks (DHWT300S). Eligible for energy incentives. Eurovent LCP certified.
