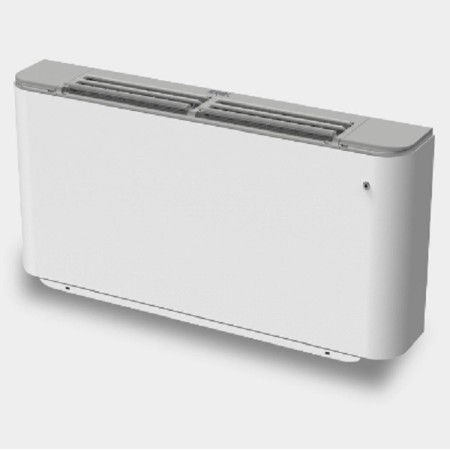

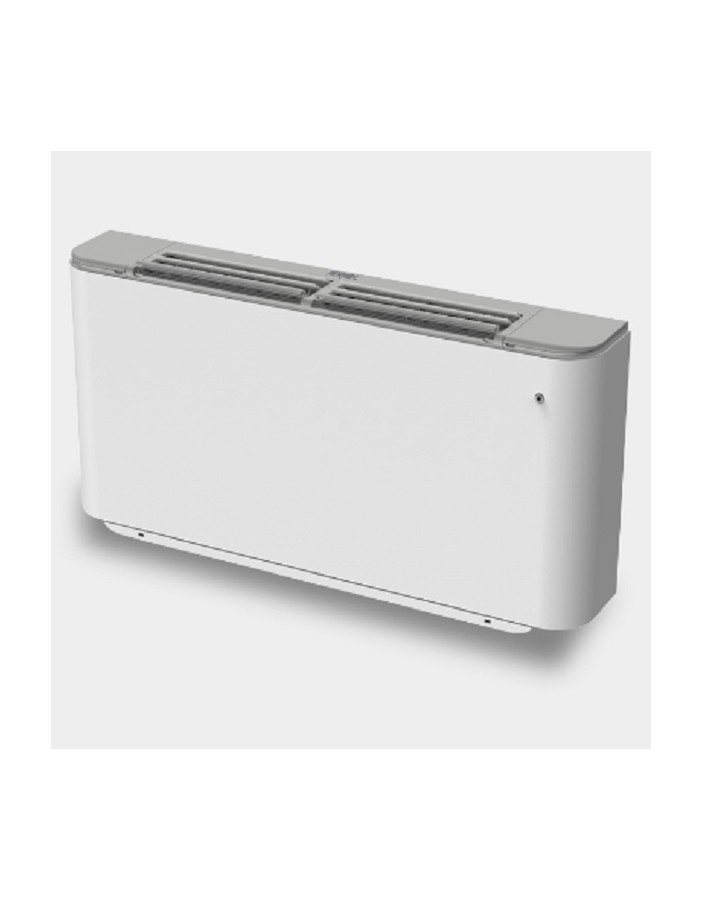

copy of Aermec UL27C fan coil unit
AERMEC UL27 – Fan coil unit – Standard – Manual speed selector.
Vertical installation only (floor-standing or wall-mounted).
1.99 kW (freddo) / 4.62 kW (caldo) • 350 m³/h.
Heating capacity low temp. (45/40°C – Eurovent): 2.29 kW.
Left-hand hydraulic connections • Ø 1/2".
Width 980×485×173 mm • Empty weight 17 kg.
Description
Fan coil unit AERMEC UL27 – Standard – Manual speed selector. Vertical installation only (floor-standing or wall-mounted).
The aesthetic feet visible in the photos (accessory ZU1) are not included.
Hydraulic Connections
Left-hand hydraulic connections • Ø 1/2".
Reversible during installation.
Performance Data
| Cooling capacity (7/12°C – max speed) | 1.99 kW |
| Heating capacity (70/60°C – max speed) | 4.62 kW |
| Heating capacity low temp. (45/40°C – Eurovent) | 2.29 kW |
| Max airflow (high speed) | 350 m³/h |
| System | 2-pipe |
| Sound power level (max speed – Eurovent) | 48 dB(A) sound power / 40 dB(A) sound pressure |
| Power supply / Motor | 3-speed single-phase motor. 230V~50Hz. Eurovent Certified. |
Dimensions & Weight
| Width (B) | 980 mm |
| Height (A) | 485 mm |
| Depth (C) | 173 mm |
| Empty weight | 17 kg |
Technical Features
- Steel casing with polyester anti-corrosion paint RAL 9003 – plastic air-distribution grille RAL 7047
- 3-speed single-phase motor on anti-vibration mounts
- Double-inlet centrifugal fans – removable volutes for easy cleaning
- Finned coil: copper tubes and aluminium fins; manifolds with air vents
- Plastic condensate tray with external drain
- Air filter – removable and washable
- Eurovent Certified Performance
Compatible Optional Accessories
- ZU1 – aesthetic structural feet (not included)
- VCH / VCHD – 3-way or 2-way motorised valve kit
- BC10 / BC20 – enlarged condensate tray (BC20 for horizontal installation)
- DSC5 – condensate drain kit
- PCU – rear closure panel
- GU – front intake grille (requires ZU1)
- AMP10 – suspended installation kit
- VMF system – thermostats and interfaces (VMF-E19I, DI24, VMF-E4X, etc.)
