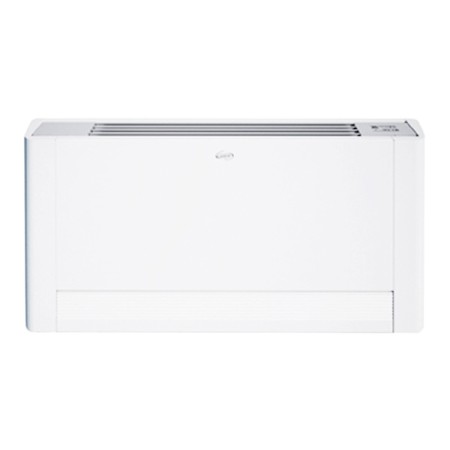

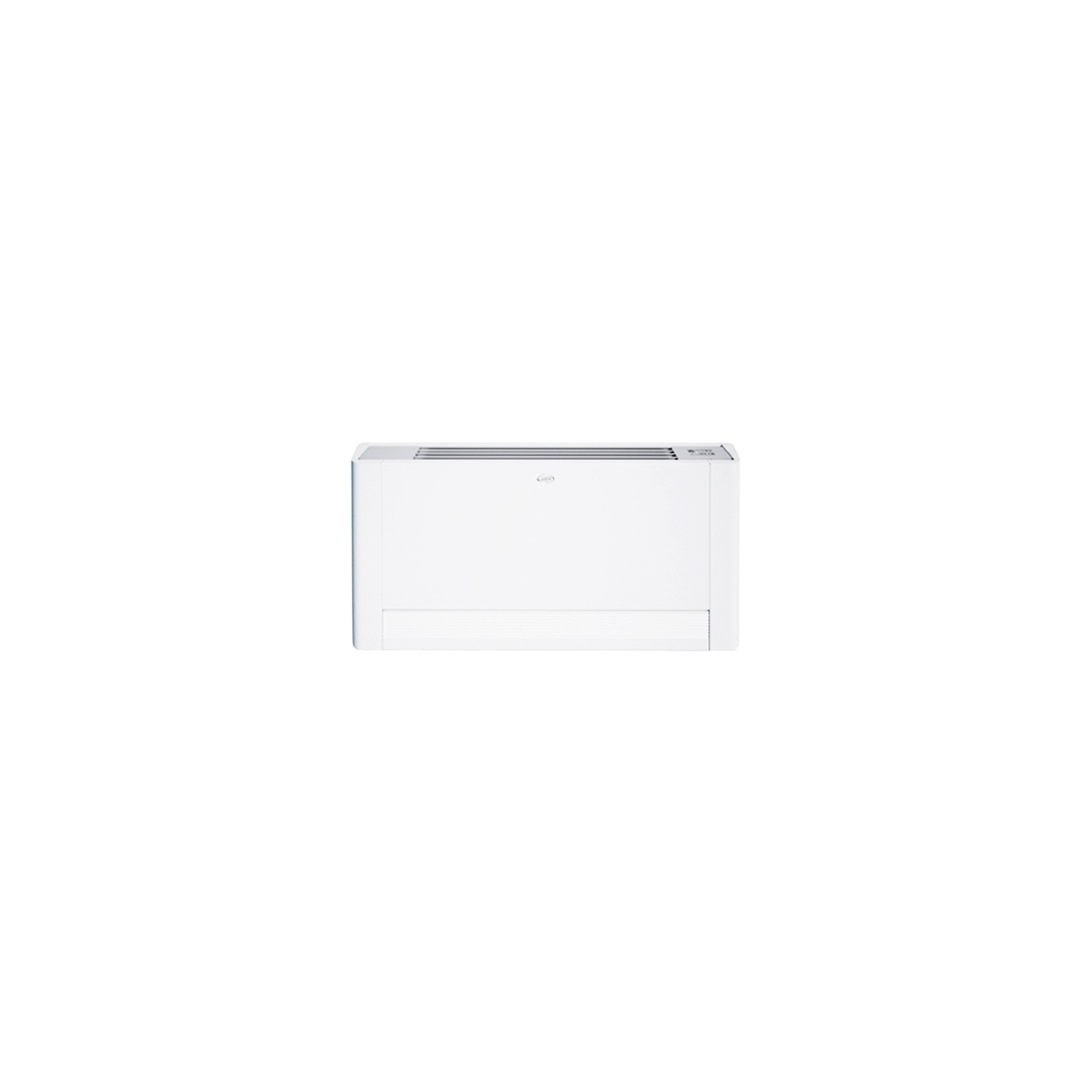

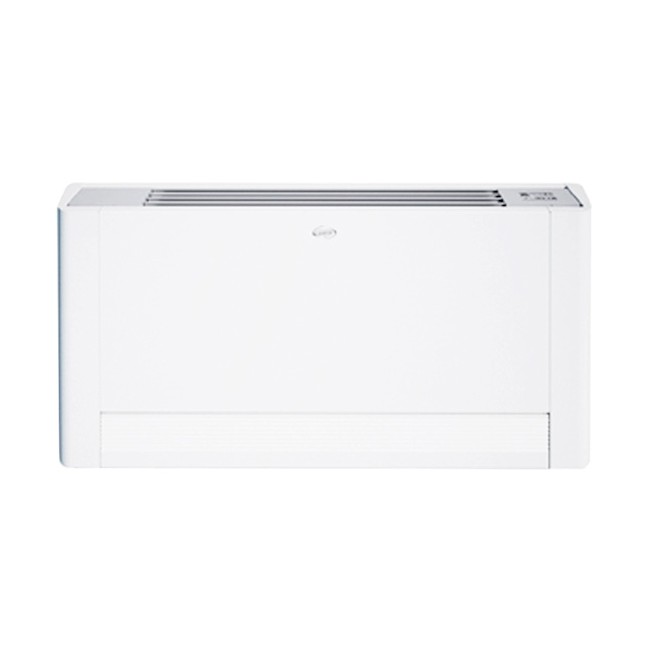

Argo FCTS-CA 03 L fan coil slim left battery connection

Slim fan coils can be installed on the floor/ceiling in any room due to their elegant design and particularly small size. They quickly reach the selected temperature and keep it constant in maximum silence, thanks to the continuously modulating fan.

The copper-aluminum exchange coil is suitable for operation with:

• high-temperature water (boiler)
• low-temperature water (condensing boiler, heat pump, etc.)
• glycol-added water

With only 129 mm depth, these fan coils can be installed in any home environment. In addition, with the fan in continuous modulation that gradually dampens the revolutions as the room temperature approaches the set point, they guarantee maximum silence. When heating, the unit develops an effective natural convection motion, similar to that of a radiator. This greatly reduces the need for ventilation.

The fan is tangential with asymmetrical blades and the exchanger with a large front surface area. Thus, effective, quiet and imperceptible air flows with low pressure drops are obtained. In addition, efficiency is very high with low energy consumption due to DC inverter technology.

FCTS fan coils can be combined with a full range of electronic controls of the PI modulating type and those of the more traditional three- or four-speed type.

Both on-board controls, recommended for vertical exposed installations, and remote controls, recommended for ceiling-mounted installations, are available. It is always necessary to match one of the options to each unit.

Various accessories are available to complete the installation: aesthetic feet to mask plumbing connection piping coming from the floor, aesthetic feet for floor mounting, condensate drip pans for horizontal ceiling-mounted terminal, and aesthetic backs for installations with the rear of the unit exposed.
