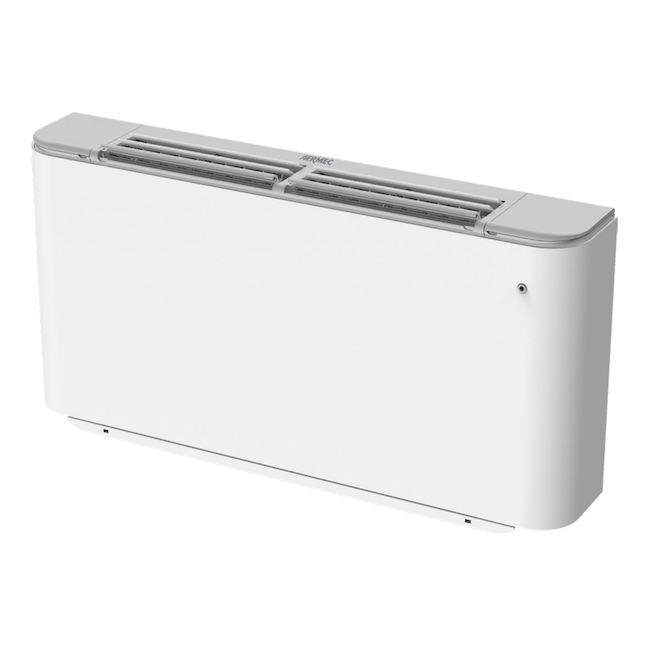

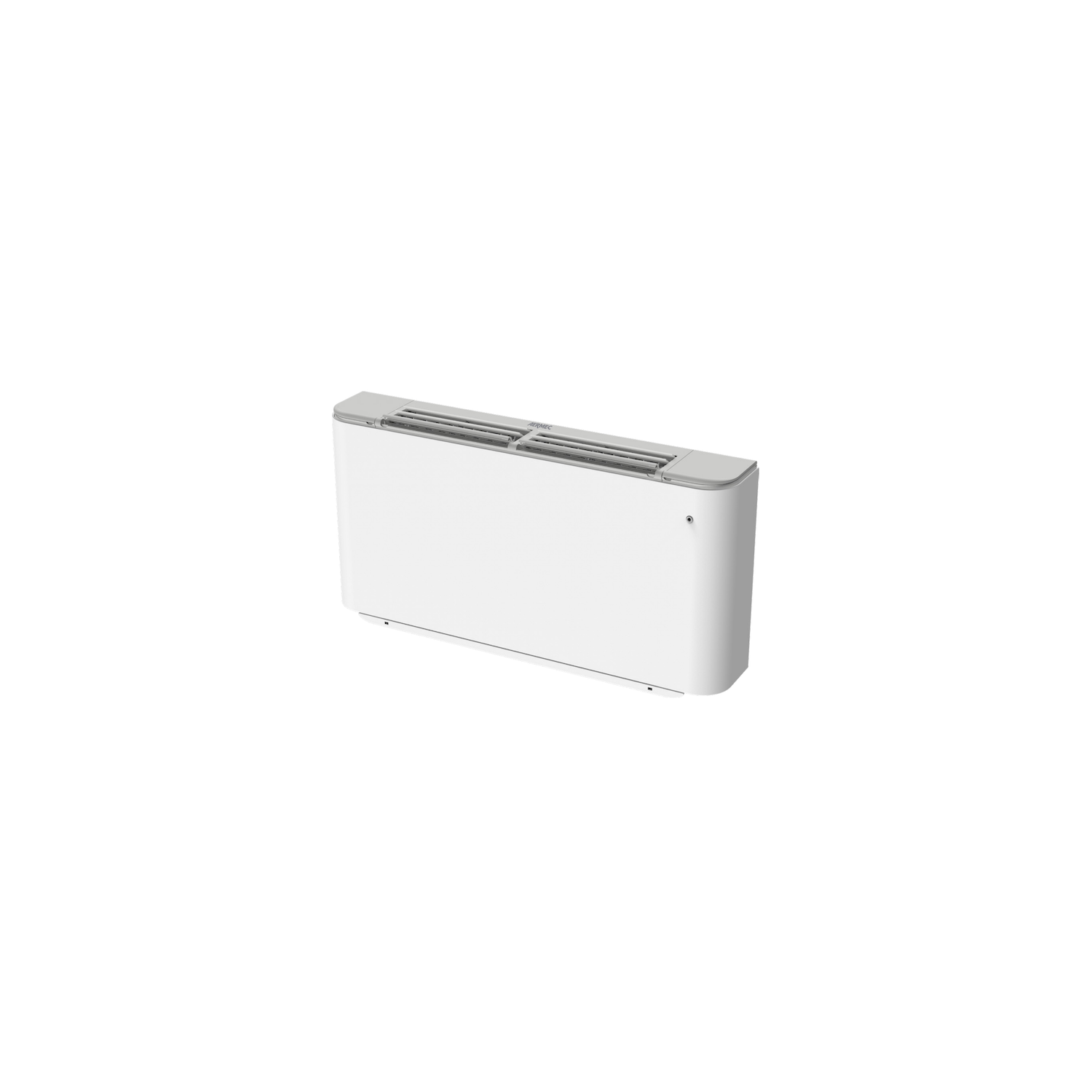

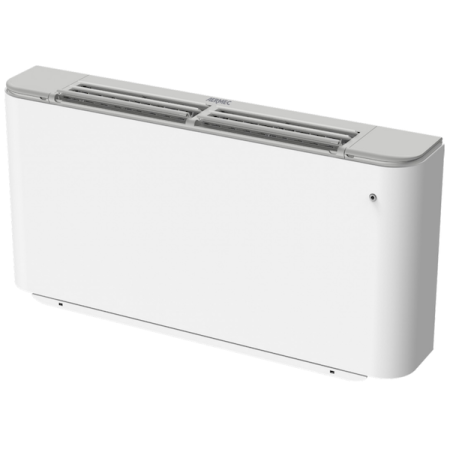

Aermec ULI37S Fan Coil Unit
AERMEC ULI37S – Brushless Inverter fan coil unit – Vertical and horizontal installation – No on-board control.
Vertical and horizontal installation (floor-standing or wall-mounted).
2.79 kW (freddo) / 5.94 kW (caldo 70/60°C) • 460 m³/h.
Heating capacity low temp. (45/40°C – Eurovent): 2.95 kW.
Left-hand hydraulic connections • Ø 1/2".
Width 1200×513×173 mm • Empty weight 20 kg.
Description
Brushless Inverter fan coil unit AERMEC ULI37S – Vertical and horizontal installation – No on-board control. Vertical and horizontal installation (floor-standing or wall-mounted).
The aesthetic feet visible in the photos (accessory ZU1) are not included in the supply.
Hydraulic Connections
Left-hand hydraulic connections • Ø 1/2".
Secondary coil connections: Ø 1/2".
Reversible during installation. Also available to order with right-hand connections.
Performance Data
| Cooling capacity (7/12°C – max speed) | 2.79 kW |
| Heating capacity (70/60°C – max speed) | 5.94 kW |
| Heating capacity low temp. (45/40°C – Eurovent) | 2.95 kW |
| Max airflow (high speed) | 460 m³/h |
| Double-inlet centrifugal fans | n. 2 |
| System | 4-pipe (standard secondary coil) |
| Sound power level (max speed – Eurovent) | 50 dB(A) sound power / 42 dB(A) sound pressure |
| Power supply / Motor | Brushless Inverter motor with continuous 0–100% speed variation via 0–10V signal. 230V~50Hz. Eurovent Certified. |
Dimensions & Weight
| Width (B) | 1200 mm |
| Height (A) | 513 mm |
| Depth (C) | 173 mm |
| Empty weight | 20 kg |
Technical Features
- Steel casing with polyester anti-corrosion paint RAL 9003 – plastic air-distribution grille RAL 7047
- Brushless Inverter motor with continuous 0–100% speed variation via 0–10V signal – up to 50% energy saving vs. 3-speed motor
- Double-inlet centrifugal fans with optimised blade profile – removable volute for easy cleaning
- Finned coil heat exchanger: copper tubes and aluminium fins; manifolds with air vents
- Plastic condensate tray with external drain
- Air filter – removable and washable
- Eurovent Certified Performance
- Ready for 4-pipe systems with standard secondary coil
Compatible Optional Accessories
- ZU1 – aesthetic structural feet (not included)
- VCH / VCHD – 3-way or 2-way motorised valve kit
- BC10 / BC20 – enlarged condensate tray (BC20 for horizontal installation)
- DSC5 – condensate drain kit
- PCU – rear closure panel
- GU – front intake grille (requires ZU1)
- AMP10 – suspended installation kit
- VMF system – thermostats and interfaces (VMF-E19I, DI24, VMF-E4X, TX, AER503IR)
