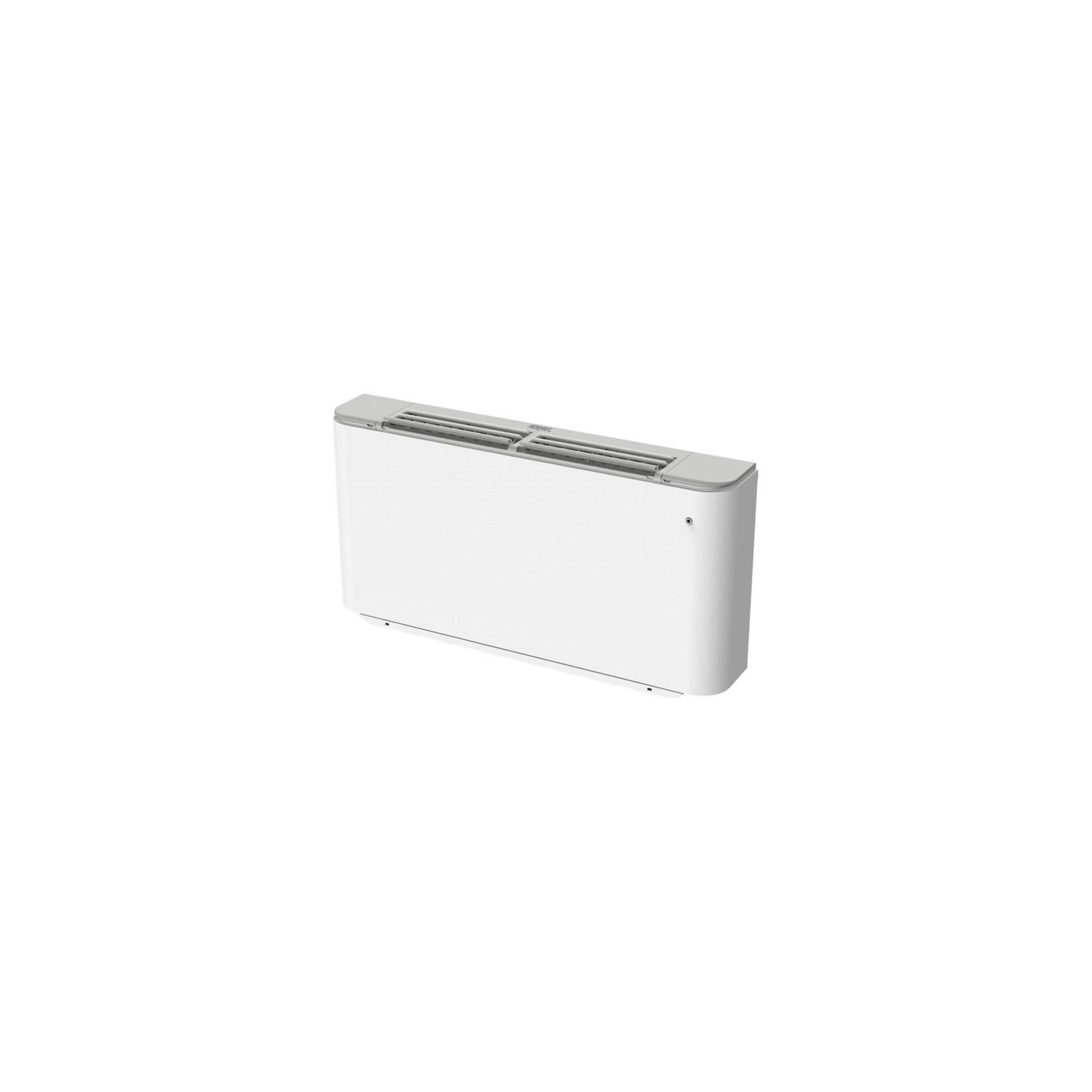

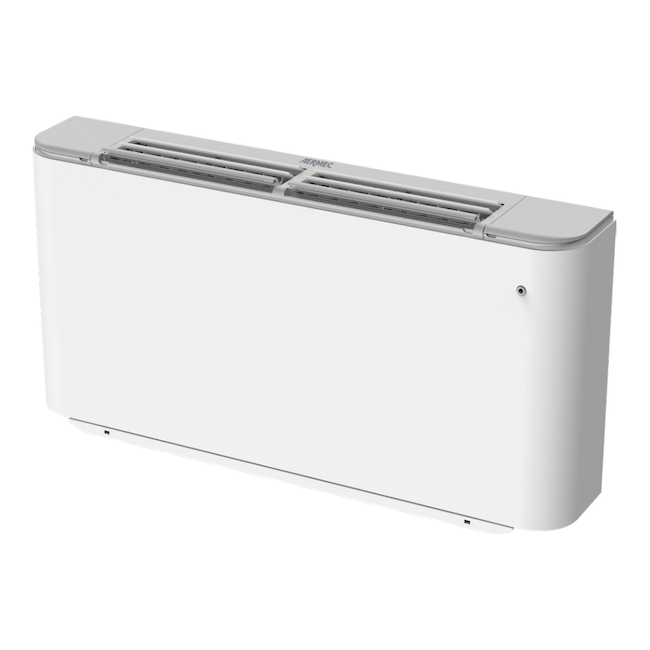

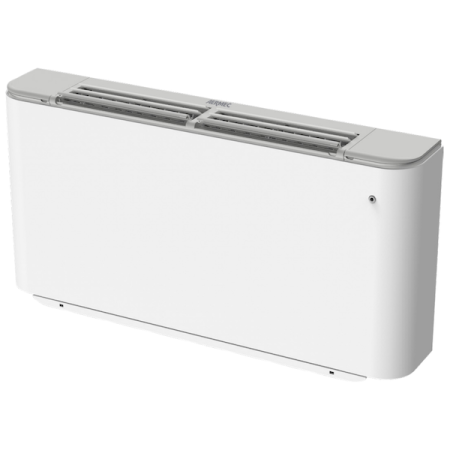

Aermec UL37R Fan Coil Unit Radiant Plate

Fan coil unit with radiant panel AERMEC UL37R – Radiant version – 3-speed motor. Vertical installation – wall or floor, with radiant panel (radiant + forced convection).

Floor mounting feet (accessory ZU) are not included.

Front radiant panel for low-temperature radiant heating (only 45°C) – silent comfort even with the fan off. Compatible with boilers and heat pumps.
Four operating modes: Radiant / Radiant + Natural convection / Radiant + Forced convection / Forced convection.

Hydraulic Connections

Right-hand hydraulic connections • Ø 14 mm.
Connections not reversible (radiant panel). Available to order with right-hand connections.

Dimensions & Weight

Technical Features

• Front panel for low-temperature radiant heating – operates at only 45°C; Electrostatically pre-charged air filter
• Steel casing with polyester anti-corrosion paint RAL 9003 – plastic grille RAL 7047
• Brushless Inverter motor with continuous 0–100% speed variation – up to 50% energy saving vs. 3-speed motor
• Double-inlet centrifugal fans – removable volute for easy cleaning
• Finned coil: copper tubes and aluminium fins; manifolds with air vents
• Plastic condensate tray with external drain
• Air filter – removable and washable
• Eurovent Certified Performance

Compatible Optional Accessories

• ZU – floor mounting feet (not included)
• PCU – rear closure panel
• GU – intake grille (requires ZU)
• VCHRAD – 3-way motorised valve kit specific for Radiant
• VMF system – thermostats (VMF-E4X/DX required)
