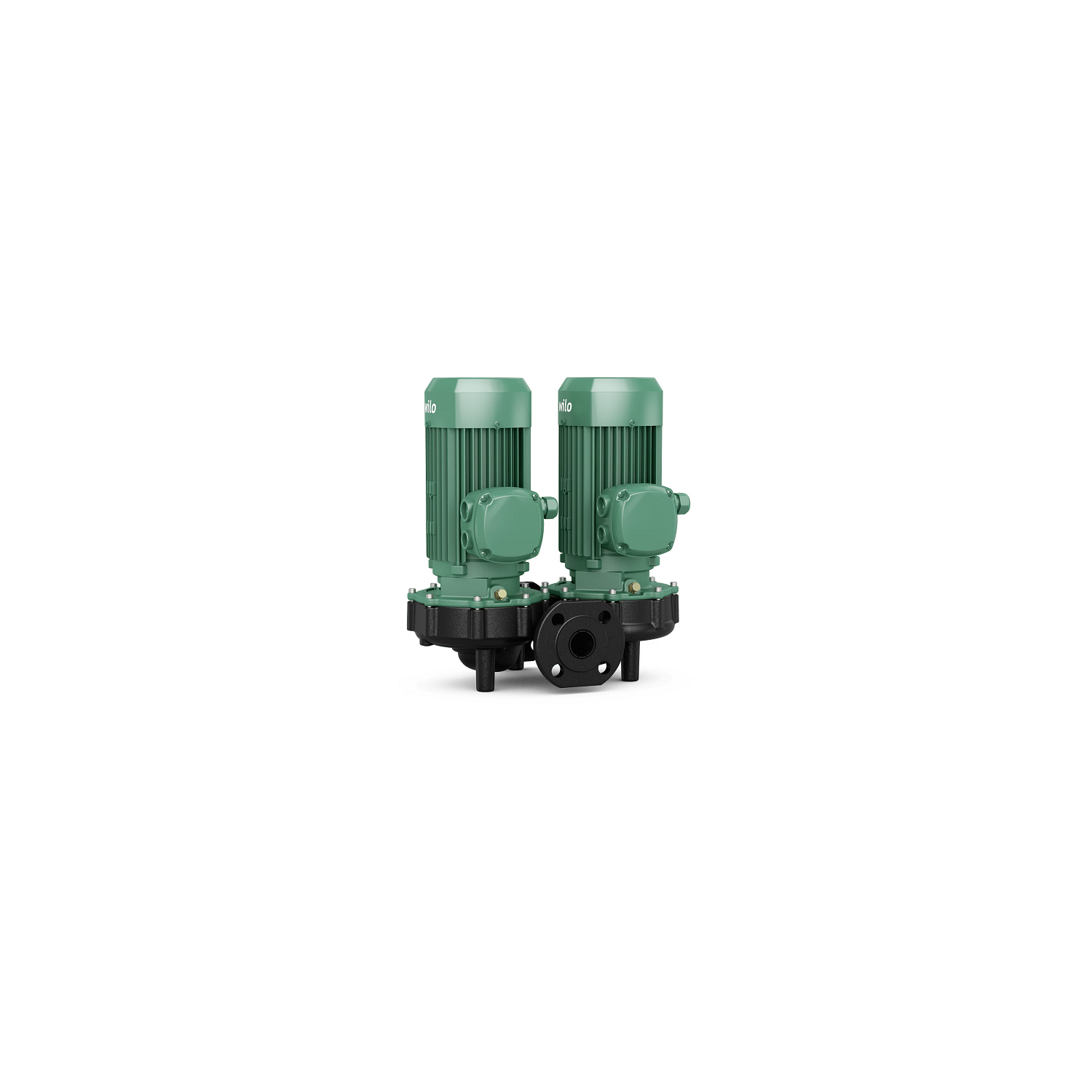

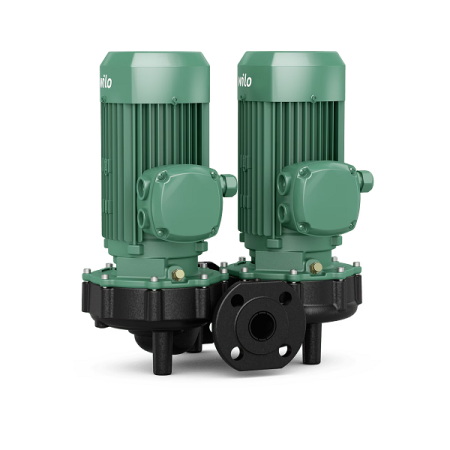

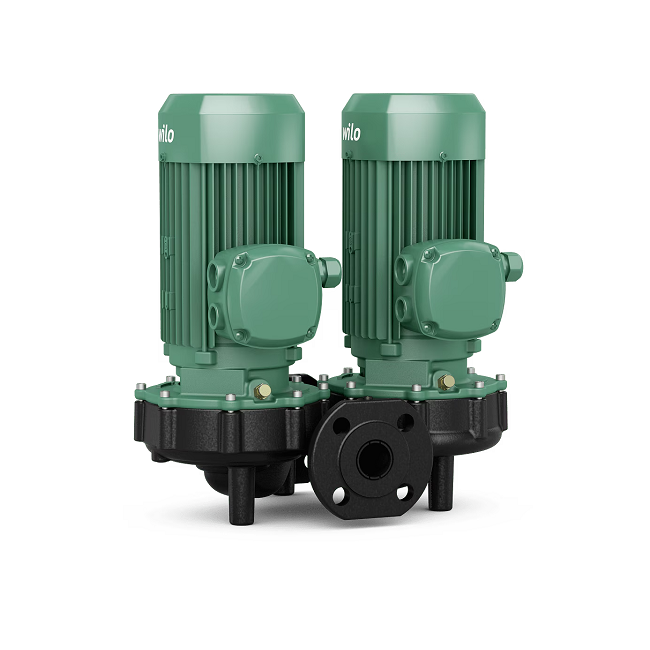

Wilo DPL100/125-1,1/4 High-efficiency in-line twin pump with ventilated motor. Power supply 3~400 V/50Hz. Flanged ports DN 100 PN 10. Temp. -20 °C +120 °C. Protection class IP 55. Nominal pressure PN 10. Centre distance 500 mm
Wilo DPL100/125-1,1/4 – High-efficiency dry-runner inline pump. Art. no. 2231872
- Connection: DN 100 | Centre distance: 500 mm
- Fluid temp.: -20 °C +120 °C | PN 10
- Power supply: 3~400 V/50Hz
- Protection: IP 55
- Application: Heating/cooling industrial plants
Description
Wilo DPL100/125-1,1/4 – High-Efficiency Dry-Runner Inline Pump
The Wilo DPL100/125-1,1/4 (Article no. 2231872): Pompa gemellare a motore ventilato ad alta efficienza tipo in-line . Alim. 3~400 V/50Hz. Bocche flangiate DN 100 PN 10 . Temp. -20 °C +120 °C. Grado protezione IP 55. Pressione nom. PN 10. Interasse 500 mm.
Technical Data
- Article no.: 2231872
- Connection: DN 100
- Centre distance: 500 mm
- Fluid temp.: -20 °C +120 °C
- Nominal pressure: PN 10
- Power supply: 3~400 V/50Hz
- Protection: IP 55
Features & Benefits
- High-efficiency air-cooled motor (IE4/IE5)
- Integrated electronic performance control
- Differential pressure transducer included
- Suitable for large flow rates and high heads
- In-line installation for space saving
- Compliant with European energy regulations
Wilo – Pioneering for You
