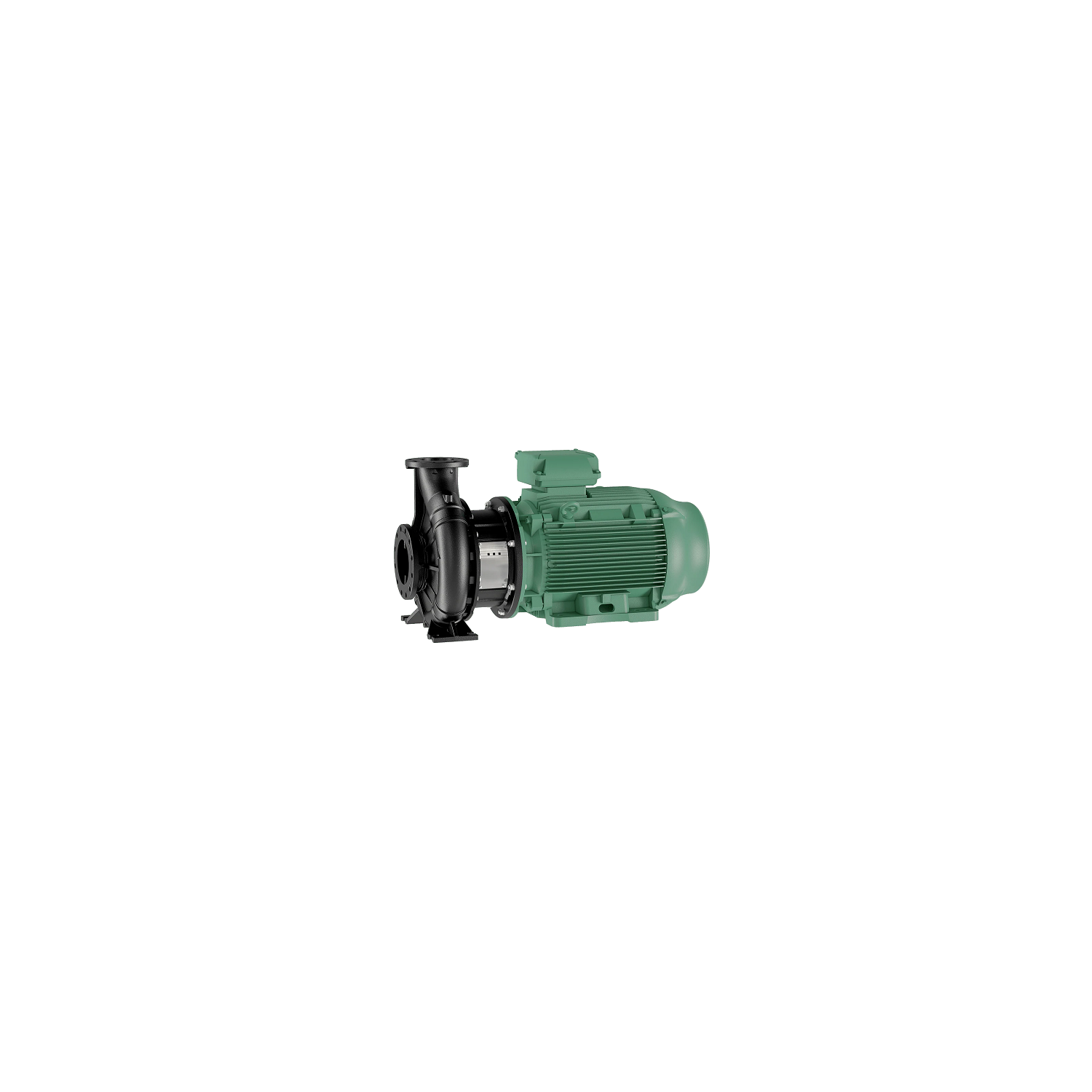

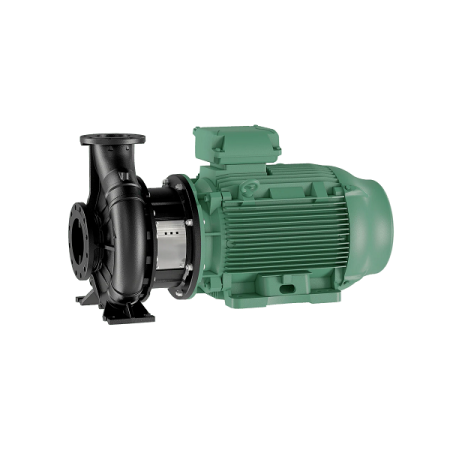

Wilo ATMOS GIGA-B 150/240-160/2 Horizontal axis monoblock pump with high-efficiency normalized ventilated motor. Alim. 3~400 V/50Hz. Flanged ports DN 150/200 PN 16. Temp. -20 °C +140 °C. IP 55 degree of protection. Pressure nom. PN 16. 2 poles.
Wilo Atmos GIGA-B 150/240-160/2 – Premium high-efficiency wet-rotor pump. Art. no. 2227574
- Connection: DN 150 | Centre distance: –
- Fluid temp.: -20 °C +140 °C | PN 16
- Power supply: 3~400 V/50Hz
- Protection: IP 55
- Application: Heating/cooling systems
Description
Wilo Atmos GIGA-B 150/240-160/2 – Premium High-Efficiency Wet-Rotor Pump
The Wilo Atmos GIGA-B 150/240-160/2 (Article no. 2227574): Pompa monoblocco ad asse orizzontale a motore ventilato normalizzato ad alta efficienza. Alim. 3~400 V/50Hz. Bocche flangiate DN 150/200 PN 16. Temp. -20 °C +140 °C. Grado protezione IP 55. Pressione nom. PN 16. 2 poli.
Technical Data
- Article no.: 2227574
- Connection: DN 150
- Fluid temp.: -20 °C +140 °C
- Nominal pressure: PN 16
- Power supply: 3~400 V/50Hz
- Protection: IP 55
Features & Benefits
- EC motor with permanent magnet technology
- Automatic performance regulation
- Real-time monitoring of flow, power and kWh
- Compliant with ErP 2009/125/EC
- Advanced display with intuitive interface
- Suitable for large heating and cooling systems
Wilo – Pioneering for You
Product Details
Tap to zoom
