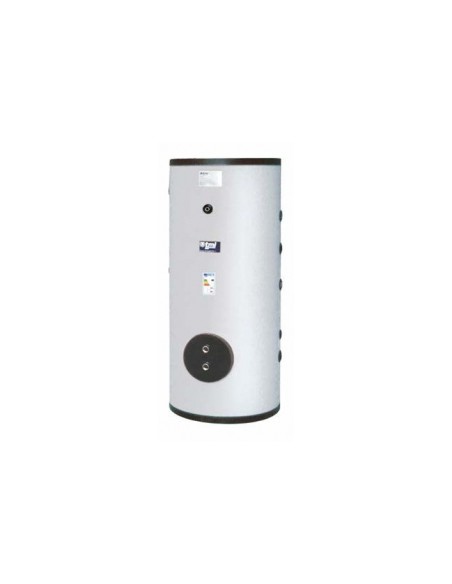

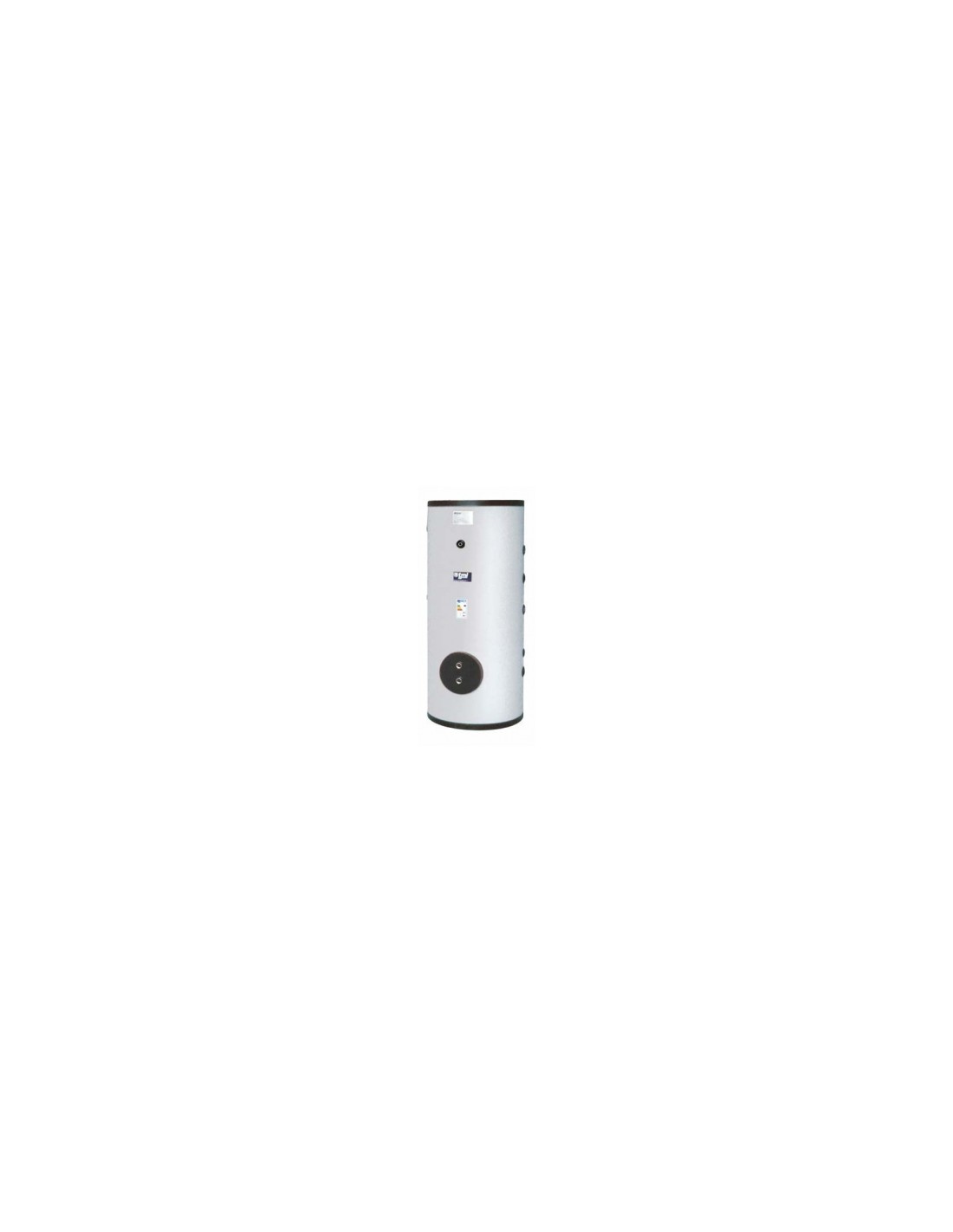

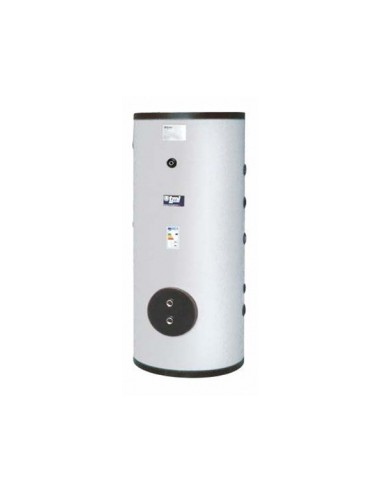

Tml BV1KLI05000F Keramtech Low Size kettle with removable exchanger lt. 5000 flexible insulation
TML BV1KLI05000F 5000 L DHW heater - Keramtech Low Size steel S235Jr (reduced height) - 1 removable heat exchanger - Max pressure 10 bar / 95°C - Ø 1800mm H 2370mm 721kg - COIB.FLEX - 5-year warranty.
Description
TML BV1KLI05000F 5000Lt - Technical Data Sheet
Technical Features
- Tank material: Keramtech Low Size steel S235Jr (reduced height)
- Internal treatment: Food-grade epoxy-ceramic coating
- Max tank pressure / temperature: 8 bar / 100°C
- Cathodic protection: Magnesium anode (electronic anode optional)
- Exchanger material: Stainless steel on removable plate
- Max exchanger pressure: 10 bar / 95°C
- No. of exchangers: 1
- Nominal capacity: 5000 Lt
- Dimensions: Ø 1800 mm - Height 2370 mm - Weight 721 kg
- Insulation: Flexible polyester + PVC insulation (class B2 DIN 4102)
- Warranty: 5 years tank / 2 years exchanger
Standards
- PED 2014/68/UE - Art.4 Par.3
- D.M. 6 Aprile 2004 N.174
- ErP 2009/125/CE
Optional Accessories
Impressed current electronic anode, control unit, thermostat, thermometer, 1.5" electric heater element
