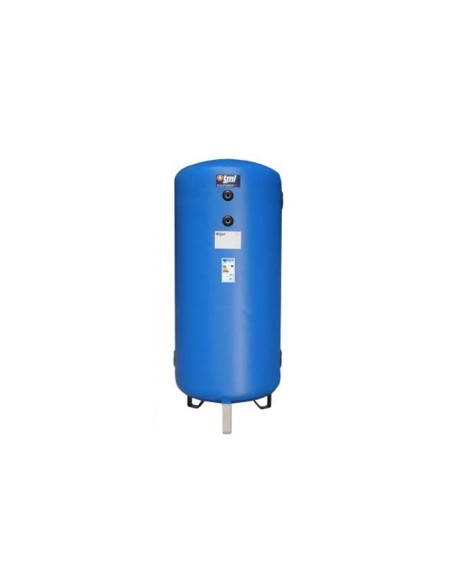

Tml Galvanized carbon steel chilled water storage lt. 2000 anti-condensation flexible insulation
TML ARZ02000FE 1950L chilled water buffer tank with anti-condensation insulation, for outdoor installation. Also acts as hydraulic separator.
- Capacity: 1950 L
- Material: Acciaio al carbonio S235Jr zincato
- Max pressure/temp: 6 bar / -10 ÷ +60°C
- Insulation: PEXL 20mm anticondensa + PVC telato anti-UV
- Installation: esterno
- Weight: 195 kg
- Dimensions: Ø1100x2360mm
- Warranty: 2 anni
Description
TML ARZ02000FE 1950L Chilled Water Buffer Tank
The TML ARZ02000FE is a chilled water storage buffer in Acciaio al carbonio S235Jr zincato, designed for air conditioning and refrigeration systems. Features anti-condensation insulation for outdoor installation and acts as hydraulic separator.
Technical Specifications
| Parameter | Value |
|---|---|
| Product code | ARZ02000FE |
| Actual capacity | 1950 L |
| Material | Acciaio al carbonio S235Jr zincato |
| Max pressure / temperature | 6 bar / -10 ÷ +60°C |
| Anti-condensation insulation | PEXL 20mm anticondensa + PVC telato anti-UV |
| Installation type | Esterno |
| Dimensions (Ø × H) | Ø1100x2360mm |
| Weight | 195 kg |
| Warranty | 2 anni |
Standards
Directive 2014/68/EU (PED) Art. 4 Par. 3
Available with baffle plates on request.
