Legionella Dosing and Control Station for Public Facilities - Liquid Chlorine Dioxide

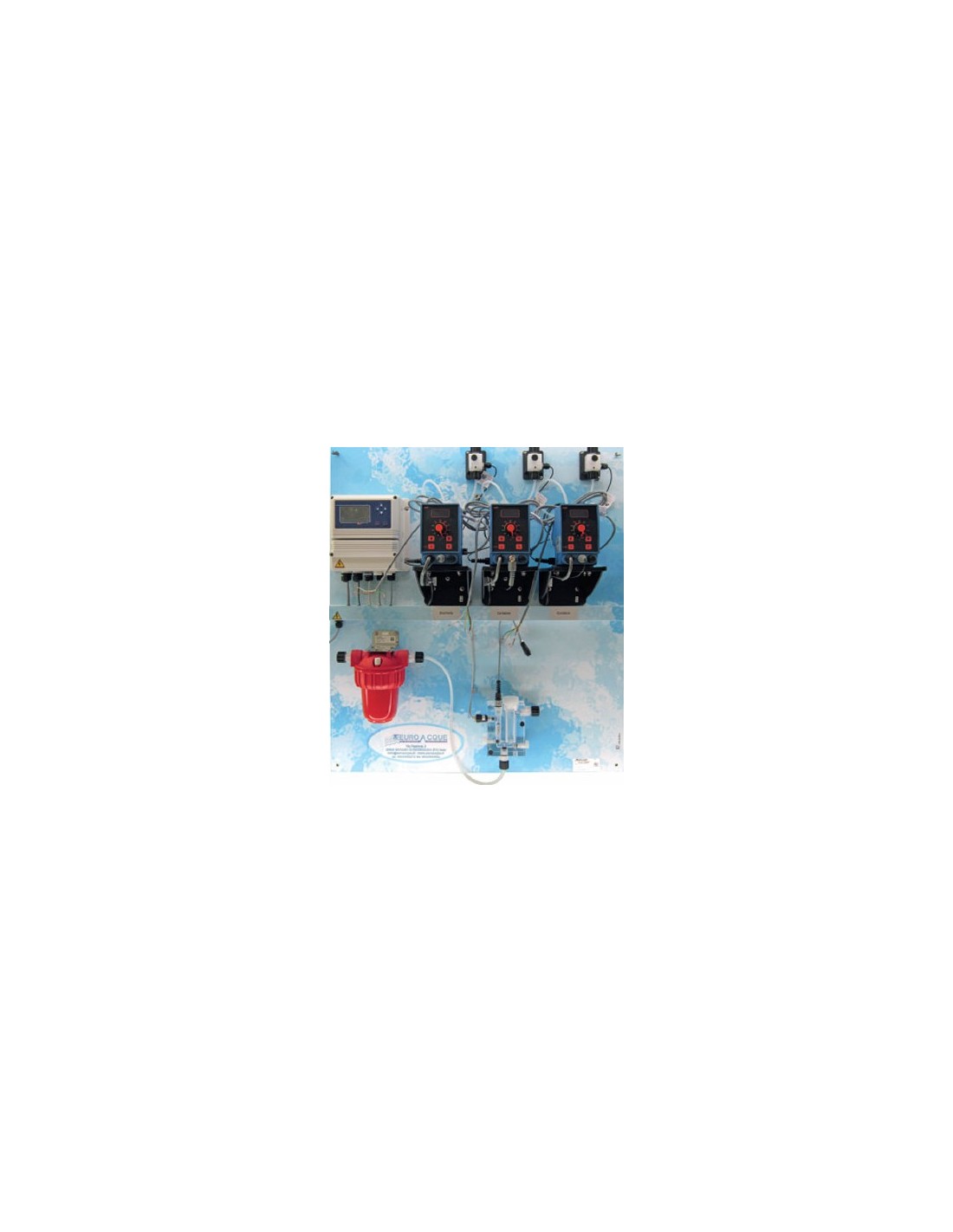

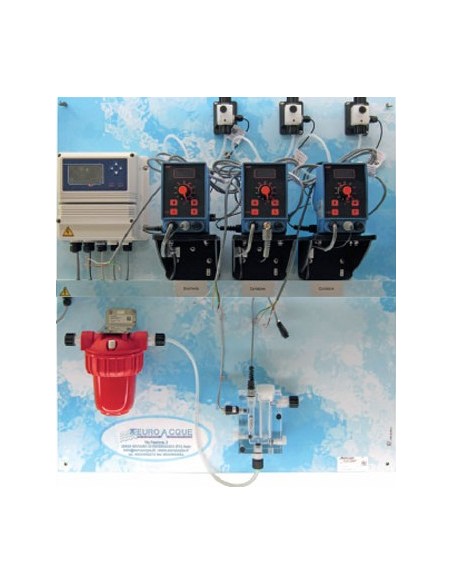

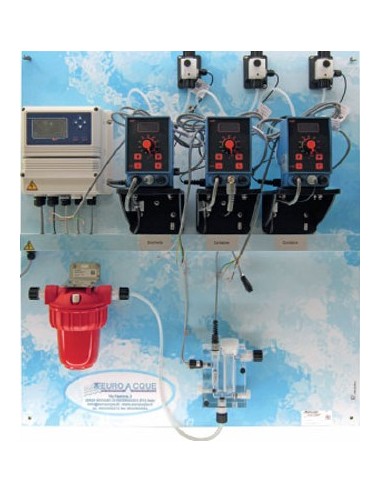

Professional system for preventive treatment of Legionella in water systems of public facilities. The panel integrates a hot water dosing station with dual dosing of stabilized and anti-corrosive liquid Chlorine Dioxide, ensuring maximum effectiveness in sanitization and microbiological control.

Main technical features

• Analysis and control unit with blue backlit LCD display, multi-input, equipped with remote control, alarm and delay function
• Hot wateramperometric

• with integrated filter for continuous measurement of Chlorine Dioxide

• digital self-purging horizontally mounteddosing pumps:
  • Pump A - BIOXIDE: sanitizing dosing in kettle circuit
  • Pump B - REINTEGRO: sanitizing dosing in circuit feed
  • Pump C - PROTECTIVE:

• • anti-corrosive dosing in circuit feed
• Dedicatedflow sensors for each of the 3 pumps for continuous monitoring of the process
• Automatic Chlorine Dioxide regulation via assembled panel with integrated control logic
• Compatible with pulse-lance meter for dosing proportional to water consumption

Applications and compliance

Ideal for hospitals, hotels, gyms, swimming pools, RSAs and collective facilities subject to national and European regulations for Legionella prevention and control (Ministry of Health Guidelines, D.Lgs. 81/2008, UNI EN ISO 11731). The system ensures compliance with chlorine dioxide concentration limits and traceability of process data via remote telecontrol.
