Euroacque AF/7000/VT 200 self-disinfecting high-flow volumetric water softener twin tank

Euroacque AF/7000/VT 200 Automatic Water Softener – High-Flow Self-Disinfecting Digital Volumetric

The Euroacque AF/7000/VT 200 is a high-flow automatic digital water softener from the AF/7000 series, designed for professional and semi-industrial applications requiring high flow rates and large ion exchange capacities. The twin-tank version — cylindrical fibreglass resin vessel + polyethylene brine tank — ensures robustness, longevity and ease of maintenance. For potable water use. Made in Italy by Euroacque, manufacturer since 1978.

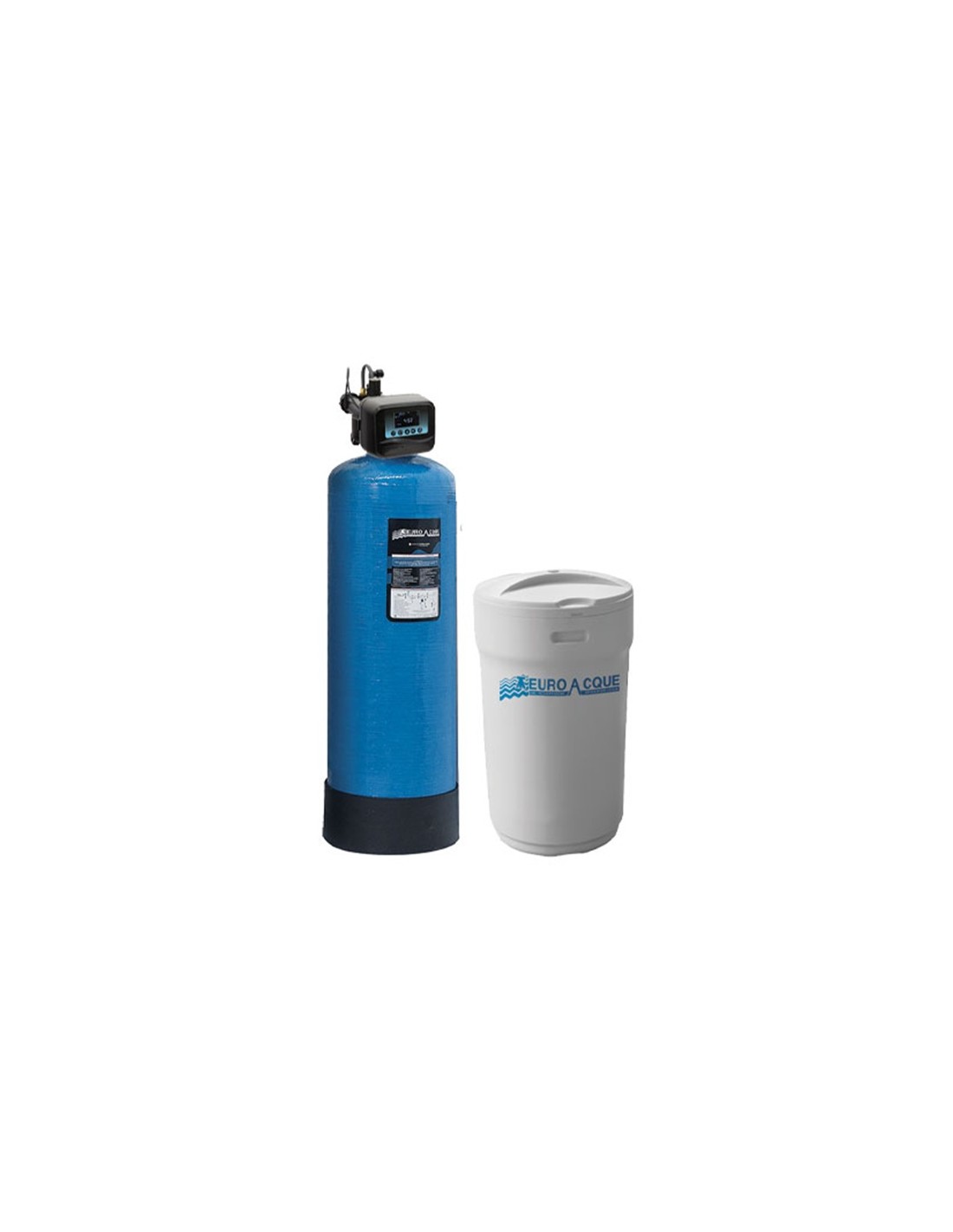

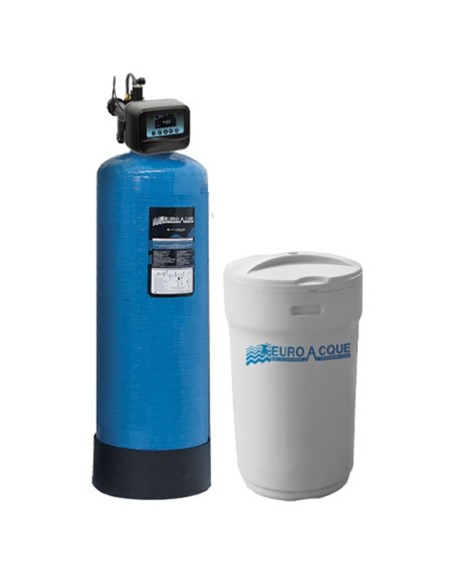

System Composition (Twin Tank)

• Vessel: cylindrical fibreglass column containing high-capacity food-grade cation exchange resins
• Valve: automatic digital component with electronic timer managing progressive operating cycles: softened water production, backwash, slow resin rinse, brine tank water refill
• Brine tank: polyethylene container for brine preparation

Technical Data

• Flow rate (ΔP = 0.2 bar): 6900 L/h
• Maximum cyclic capacity: 1200 m³×°Fr
• Connections: 1¼" M
• Dimensions (H × W × D): 1700 × 454 × 833 mm
• Operating pressure: 1.8 – 5.0 bar

Key Technical Features

• Digital electronic timer with volume + time regeneration – triggers regeneration at the right moment, optimising salt and water consumption
• Self-disinfecting – integrated chlorine generator (PRODCLOR) – electrolytic cell that uses the softener brine during regeneration to produce chlorine via electrolysis, ensuring resin sterilisation at every cycle and preserving bacteriological water quality
• Internal hardness mixing valve – optional BY-PASS AF7VT accessory (code SARCIN10): 1" mixing by-pass + ECO hardness kit for precise residual hardness control
• High flow rates up to 6900 L/h, ideal for apartment blocks, hotels, hospitality facilities, small food industries and semi-industrial applications
• Large cyclic capacity – 1200 m³×°Fr to reduce regeneration frequency
• Adjustable progressive operating cycles: softened water production (adjustable hardness), backwash, slow resin rinse, brine tank refill
• 1¼" M connections – sized for high-flow systems

Supply Includes

• Digital volumetric and timed automatic valve
• Fibreglass-lined plastic pressure vessel
• Polyethylene brine tank
• High-capacity food-grade ion exchange resins
• Chlorine generator (electrolytic cell)
• Internal mixing valve
• User manual

Compatible Accessories

Mixing by-pass SARCIN10 (BY-PASS AF7VT) – 1" mixing by-pass + ECO hardness kit.

All materials are suitable for potable use, compliant with Italian Ministerial Decree 6 April 2004, No. 174. Start-up is performed by an authorised Euroacque Technical Service Centre (CAT). Annual CAT inspection and a maintenance contract are recommended.
