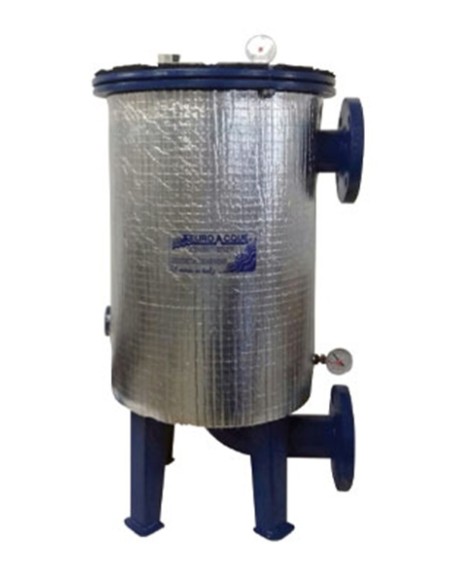

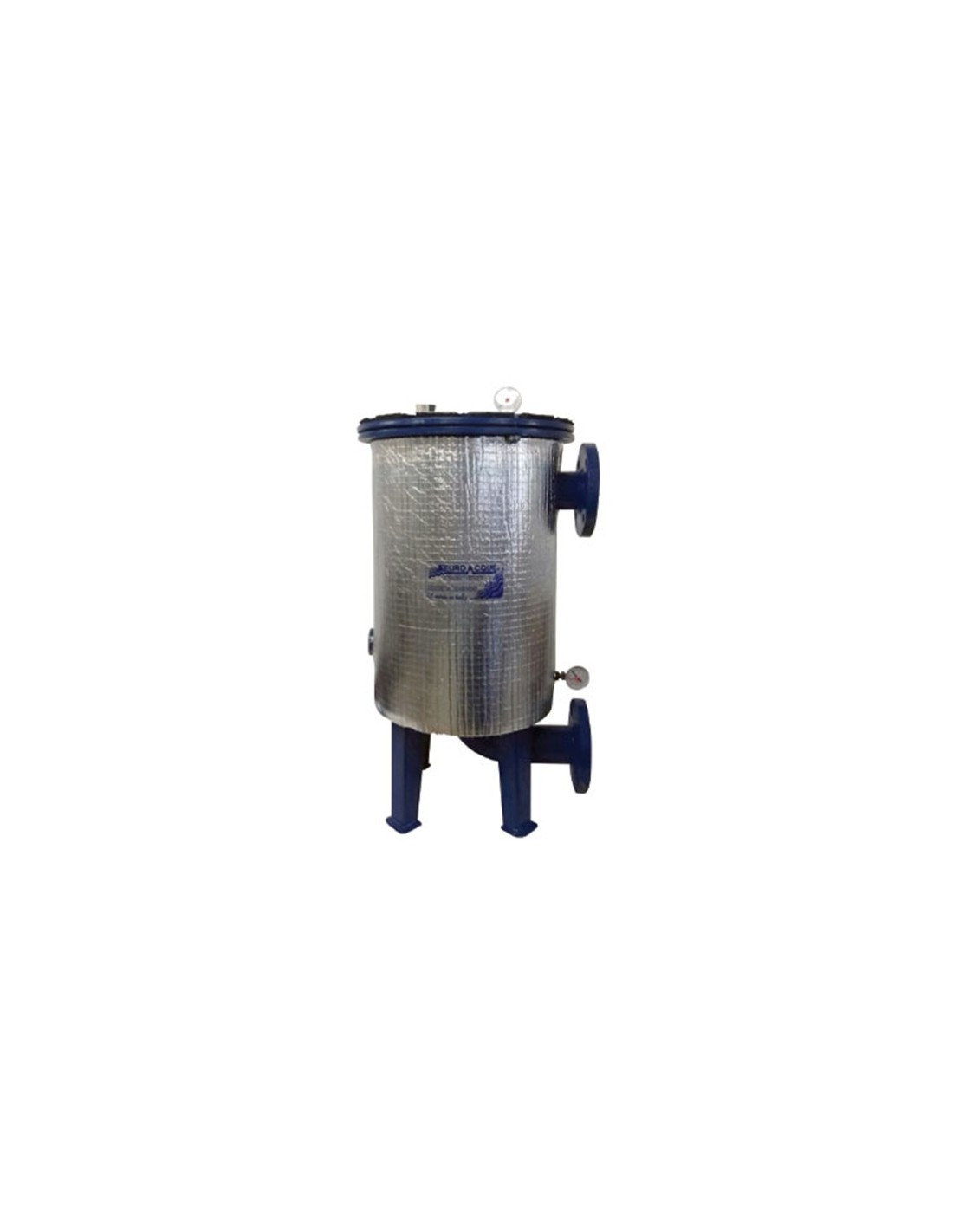

Euroacque D/BIG MAG DN65 multi-cartridge insulated magnetic dirt separator filter for large systems

Euroacque D/BIG MAG DN65 – Insulated Multi-Cartridge Magnetic Dirt Separator Filter for Large Thermal Systems

The Euroacque D/BIG MAG DN65 is an insulated multi-cartridge magnetic dirt separator filter from the D/BIG/MAG series, designed for the protection and continuous cleaning of large heating and cooling thermal circuits in commercial and industrial applications. It effectively filters and retains iron oxides, sludge, slime and debris, contributing significantly to the reduction of energy, maintenance and repair costs. Made in Italy by Euroacque, manufacturer since 1978.

Technical Data

• Connections: DN65
• No. AISI 316 cartridges: 4 cartridges Ø95 mm × 220 mm, 100 microns, double-reinforced with magnetic rings
• Nominal/maximum flow rate: 38-45 m³/h
• Dimensions (A × B): 750 × 425 mm
• Maximum pressure: 5 bar
• Maximum temperature: 100°C

Key Technical Features

• Multi-cartridge magnetic filtration – 4 AISI 316 stainless steel double-reinforced cartridges with high-efficiency magnetic rings for the capture of ferromagnetic particles (iron oxides, magnetite) and non-ferromagnetic particles (slime, sludge, debris) at 100 microns
• High-efficiency magnets – effective capture of ferromagnetic deposits that cause corrosion, energy efficiency losses and damage to system components
• Carbon steel body with external epoxy coating and thermal insulation to reduce heat dispersion
• Dirt separator function – separation and accumulation of sludge in the collection chamber for easy periodic purging
• Chemical additive injection point – integrated injection point for adding protective chemical products without interrupting service
• Control pressure gauges upstream and downstream for monitoring pressure drop and indicating when cartridge cleaning is needed
• Drain and vent valve for purging accumulated sludge and air bleeding
• Easy installation and maintenance – designed for commercial and industrial needs with easy access to cartridges

Main Applications

Ideal for: industry, public buildings, apartment blocks, hospitals, healthcare centres, sports centres, swimming pools, hotels, cinemas, schools and any large commercial or industrial thermal system.

Maximum pressure: 5 bar – Maximum temperature: 100°C – External treatment: epoxy coating and insulation. Made in Italy.
