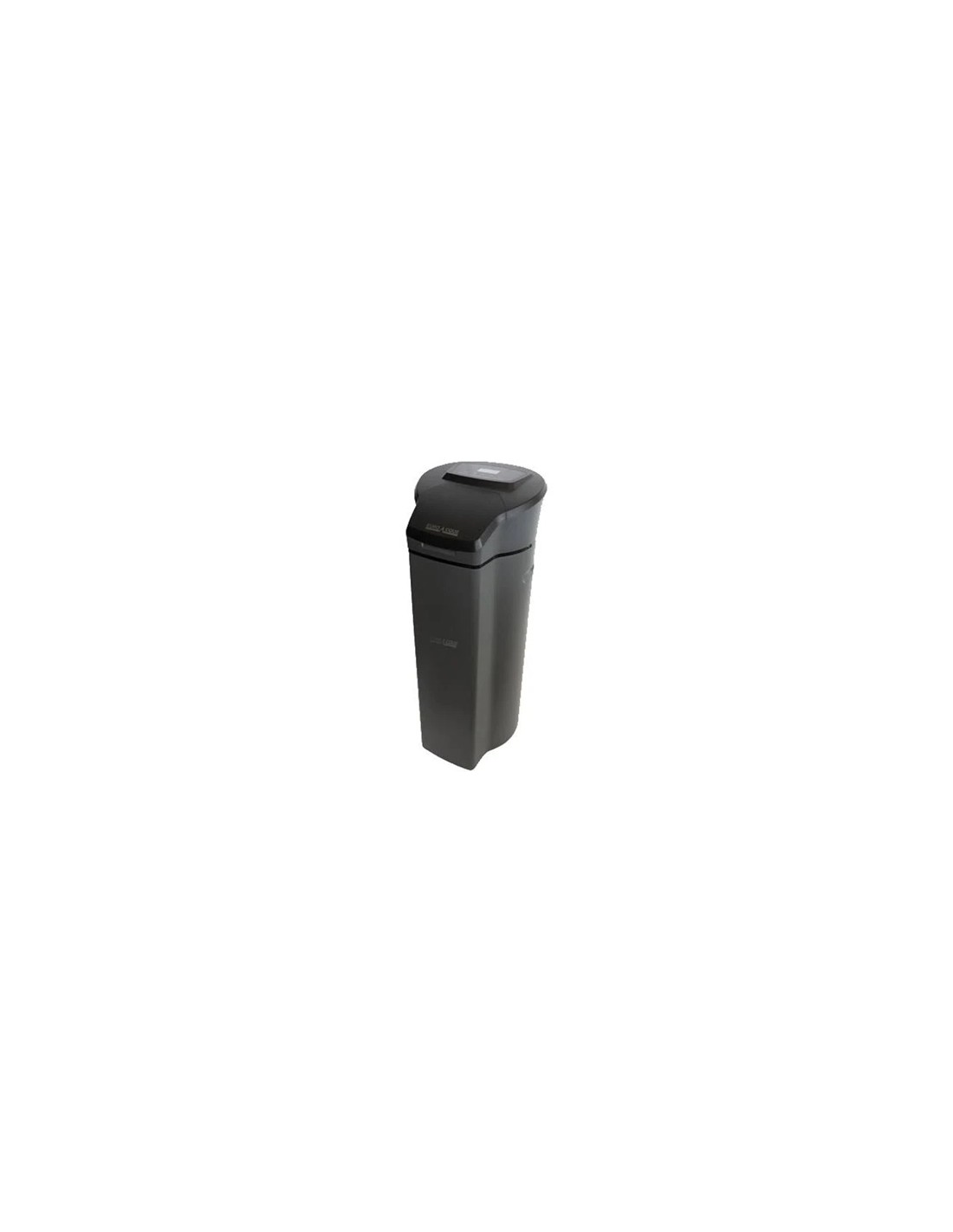

Euroacque VELVET M22 eco cabinet water softener dual proportional volumetric

Euroacque VELVET M22 Automatic Water Softener – Ecological Dual Statistical Proportional Volumetric Cabinet

The Euroacque VELVET M22 is the top-of-range cabinet water softener from Euroacque: dual statistical proportional volumetric with colour touch-screen LCD display, integrated titanium electrode self-disinfection, special monospher resins and exclusive counter-current brine injection system. Up to 80% savings in salt and water vs traditional softeners. For potable use. Extended 5-year warranty. Made in Italy by Euroacque, manufacturer since 1978.

Technical Data

• Flow rate (ΔP = 0.2 bar): 1800-2200 L/h
• Maximum cyclic capacity: 132 m³×°Fr
• Connections: 1"
• Dimensions (A × B × C): 1000 × 400 × 455 mm

Dual Statistical Proportional Technology – Up to 80% Savings

The regeneration system statistically calculates actual net consumption and the softened water safety reserve, deciding each time whether to delay or advance regeneration and how much salt and water to use. It regenerates only the resin actually used, optimising every cycle.

Key Technical Features

• Colour touch-screen LCD display – intuitive interface with statistical recorder and data reports for complete operational monitoring and historical data memory
• Titanium electrode self-disinfection – integrated chlorine production in the valve body for maximum bacteriological quality of treated water
• Special monospher resins – optimise ion exchange efficiency combined with the counter-current injection system
• Counter-current brine injection (up-flow-super) – new internal rod with integrated flow director that exploits 100% of the resins, eliminates a washing phase and reduces water consumption
• "Dry" brine tank regeneration – brine is prepared in the required quantity a few hours before use using softened water, always ensuring clean, fresh regenerant with zero waste
• Holiday function – prevents salt and water waste during periods of non-use; periodic water rinses keep resins clean and ready; the softener exits holiday mode automatically at first recorded consumption
• Salt exhaustion sensor + dual blue LED – display alerts when salt level is low; LEDs illuminate the cabinet interior for easy reading and maintenance even in dark spaces
• Triple anti-flood protection – electronic phase control + overflow + mechanical float with non-contact brine level control system; twin anti-clogging and anti-scaling filters
• Advanced control unit – waterproof automotive-grade wiring for saline environments; backup battery maintaining operation for one month (up to 10 regenerations) without power; "CALL" maintenance reminder on display
• Hardness mixer integrated in valve body – precise residual hardness adjustment
• Easy maintenance – "red-clip" quick-release system for tool-free access to maintenance points
• Ergonomic handles – easy to move and transport
• Automatic bypass during regeneration – automatically enters bypass mode during regeneration, always ensuring water supply to the user

Included in Supply

• System isolation by-pass
• Drain connection kit
• Integrated hardness mixer
• Integrated self-disinfection (titanium electrodes)
• Start-up by authorised Euroacque service centre

Benefits of Softened Water for the Home

55% saving on detergents and soaps · 33% saving on laundry wear · 60% energy saving for hot water heating (2mm of scale) · 92% saving on maintenance (boiler, water heaters, dishwashers, pumps). Softer skin, shinier hair, spotless dishes, protected pipes, boiler protection with 17–21% energy consumption reduction.

For potable use. Extended 5-year Euroacque warranty. Made in Italy.
