Euroacque CONTO DN65 pulse output turbine water...

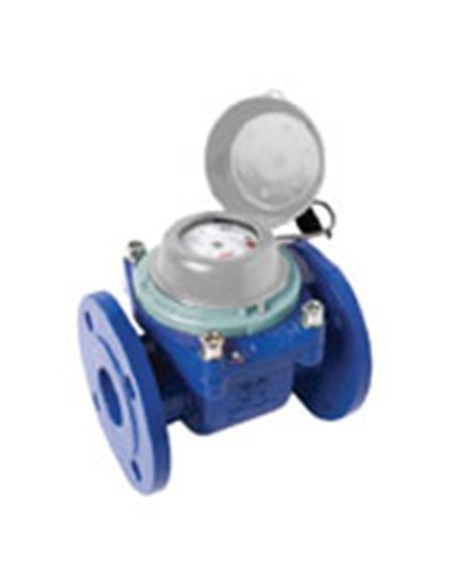

Euroacque CONTO DN65 pulse output turbine water meter dry dial MID certified

Euroacque CONTO DN65 pulse output turbine water meter dry dial MID certified

Euroacque CONTO DN65 pulse output water meter – axial removable Woltmann turbine WMAP EVO – flanged, DN65 connections. Predisposizione impulsi reed switch e induttivo. Moduli radio opzionali (M-Bus, LoRaWAN, Sigfox). Permanent flow rate Q3 = 63 m³/h, PN 16 bar, max temperature 50°C. MID certified, potable water D.M. 174/2004. Made in Italy.
CONTO107
Last items in stock
€936.96 €1,464.00 -36%
Tax included

Description

Euroacque CONTO DN65 – Pulse output water meter MID DN65

Il contatore Euroacque CONTO DN65 è un misuratore volumetrico a turbina con quadrante asciutto per installazione in rete idrica e collegamento con pompe dosatrici proporzionali e/o pannelli di dosaggio e controllo. Made in Italy da Euroacque, produttore dal 1978.

Technical data

  • Connections: DN65
  • Permanent flow rate Q3: 63 m³/h
  • Dimensions: L=200 mm, H=218 mm, D=185 mm
  • Nominal pressure: PN 16 bar
  • Maximum temperature: 50°C
  • Maximum reading: 100.000.000 m³
  • Installation class: U0-D0

Construction and features

WMAP EVO axial removable Woltmann turbine water meter. Flanged ductile iron body with epoxy powder coating. Steel pivot and synthetic sapphire bearing. Clockwork with glass disc and copper capsule (IP68): only the turbine contacts the water; the entire clockwork is dry and always readable. Internal mechanism in non-hygroscopic, anti-scaling, wear-resistant plastic. Serial number numerically and barcode; MID inscriptions on metal label on flange. Horizontal and vertical installation (U0-D0). Metrological class R (Q3/Q1) ≤ 250. 3 pulse outputs (1 inductive + 2 reed switch) for pulse emitter or radio module also after installation.

Pulses and wiring

3 standard pulse outputs (1 inductive + 2 reed switch). Compatible with wireless M-Bus, LoRaWAN, Sigfox radio modules.

Certifications

MID certified Directive 2014/32/EU (Annex MI-001) – D.Lgs. No. 84 of 19/05/2016. Modules B+D. R (Q3/Q1) ≤ 250. Certified for potable water D.M. 6/4/2004 No. 174. 100% production tested at 3 points (Q1, Q2, Q3), ISO 4064/3 and ISO 4185 (EN 14154/III), European notified body.

Available accessories

  • Single Reed Switch pulse emitter
  • FlowPulse / FlowPulse M-Bus – bidirectional inductive emitter with alarms
  • ARROW radio modules 868 MHz, ARROW WAN 169/868 MHz – wireless M-Bus, LoRaWAN, Sigfox
  • Counter-flange kit (two flanges, gaskets and bolts) – for WMAP EVO
  • Thread straightener – installation without straight pipe sections
