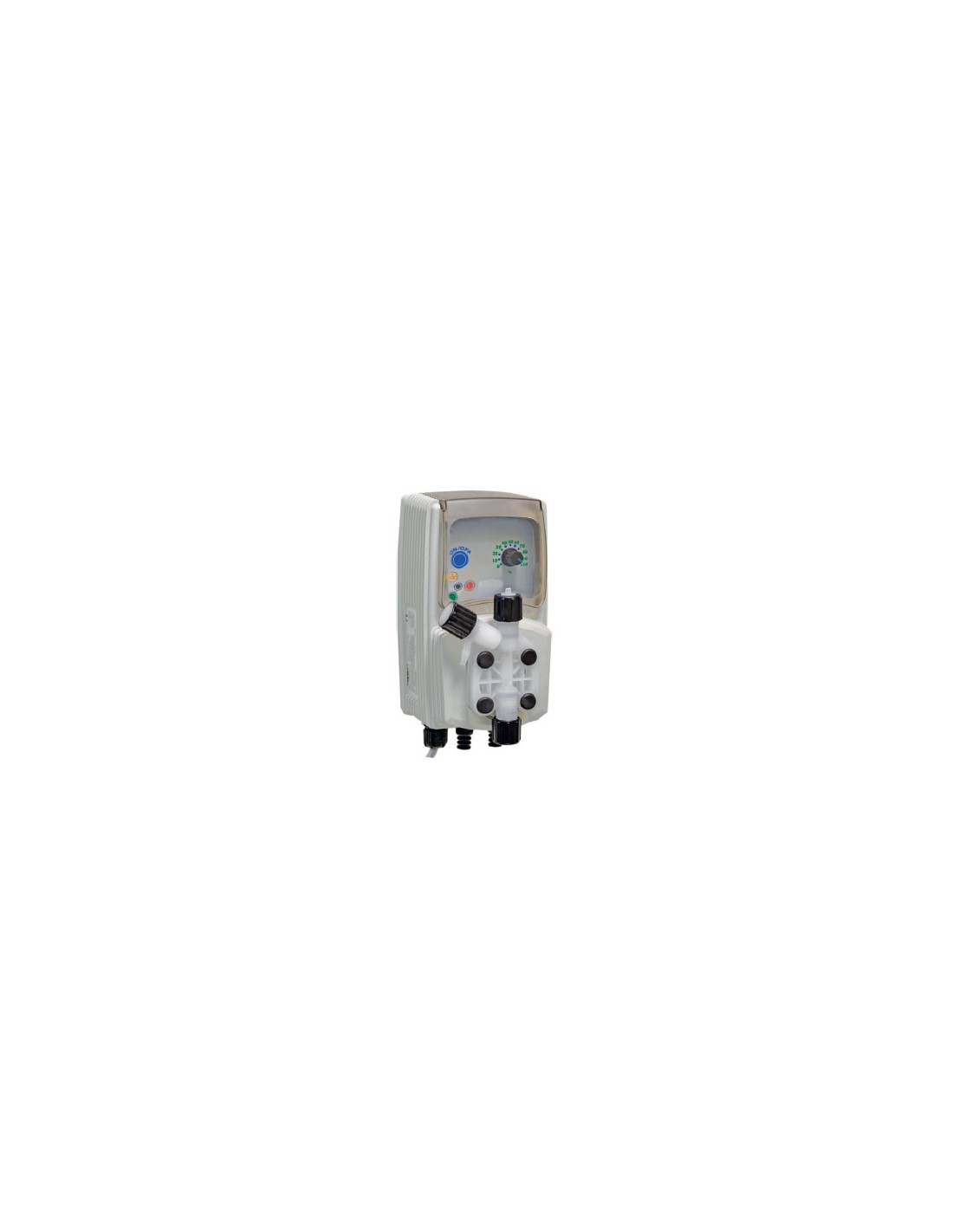

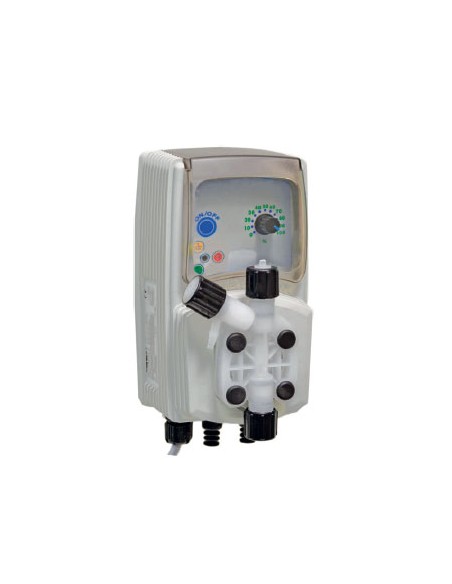

Euroacque EURO VMF 6/7 PRO multifunction electromagnetic diaphragm dosing pump

Euroacque EURO VMF 6/7 PRO Electromagnetic Dosing Pump – Digital Multifunction with IP65 LCD Display

The Euroacque EURO VMF 6/7 PRO dosing pump is a vertical-mount electromagnetic diaphragm dosing pump designed for constant and proportional dosing of liquid chemical products in water treatment, disinfection and conditioning systems. PVDF pump body, blue backlit digital LCD display IP65, microprocessor with electronic flow rate control. Made in Italy by Euroacque, manufacturer since 1978.

Technical Data

• Standard flow rate: 6 L/h
• Standard pressure: 7 bar
• Pump body: PVDF
• Display: Blue backlit LCD, IP65
• Mounting: vertical
• Input pulse divider: 1 to 1000

Multifunction Dosing Modes

Constant, Divide, Multiply, PPM, Batch, Volt, mA, %, ml/q – configurable for any proportional or constant dosing application.

Key Technical Features

• IP65 backlit LCD display for reading and programming in any environmental condition
• Anti-dry-run level probe – detects liquid level in the tank and stops the pump when empty, preventing dry running and pump damage; enables direct draw from standard container
• PVDF pump body – highly resistant to aggressive chemicals
• Proportional digital signal dosing – accepts pulses from well pump contact, flow meter or other external signal
• Protection password – ability to lock programmed parameters
• PRO version – dosing parameters already pre-set for Euroacque chemical products: EUROSIL XS, ALGOL, EUROUMIDIS; operational immediately after installation without manual configuration
• Injection valve included
• Bottom/filter valve included
• Suction/delivery/air bleed tubes included

Main Applications

• Water system disinfection
• Legionella prevention
• Scale and corrosion treatment
• Dosing of biocides, corrosion inhibitors, antiscalants

Installation

Installation in 5 steps: 1) pump positioning (max 1.5 m above container bottom), 2) hydraulic connection (tubes, level probe, injection valve), 3) electrical connection, 4) priming, 5) programming.

Made in Italy by Euroacque, manufacturer since 1978.
