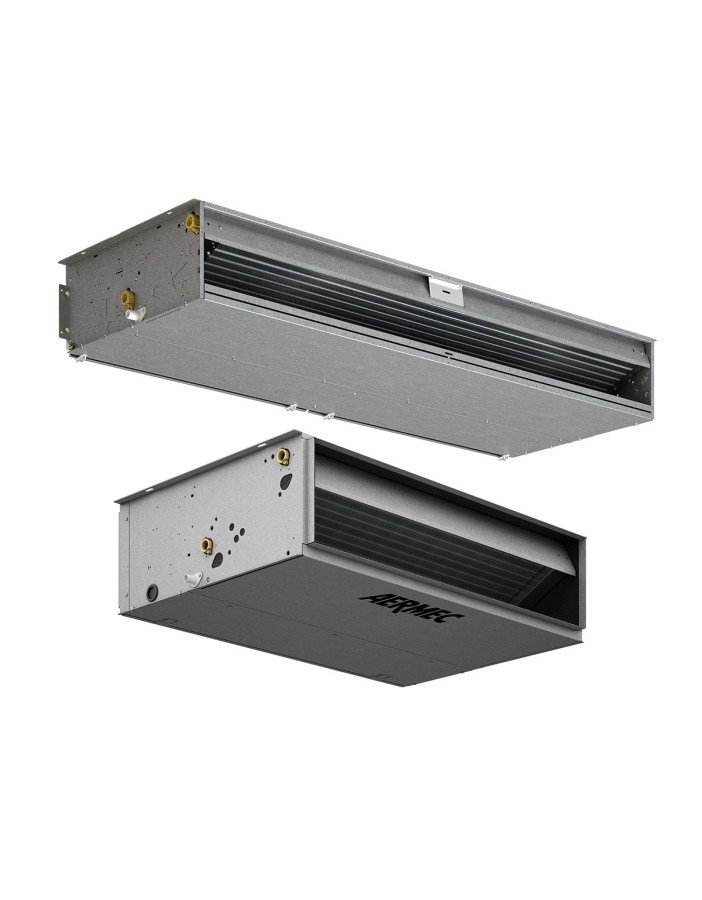

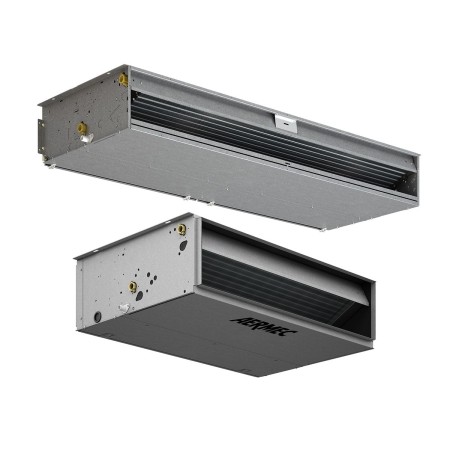

Aermec VES7400I ves7400i ve7 slim fan coil unit
AERMEC VES7400I – Brushless EC Inverter ducted fan coil unit slim line.
Horizontal or vertical installation in false ceiling or technical space. 2/4-pipe systems.
11.80 kW (freddo 7/12°C) / 25.37 kW (caldo 70/60°C) • 1650 m³/h.
Reversible main coil. Connections 3/4". Air filter Class G3, easy extraction.
2222×558×217 mm • 68 kg.
Description
Brushless EC Inverter ducted fan coil unit slim line AERMEC VES7400I.
Horizontal or vertical installation in false ceiling or technical space. 2/4-pipe systems..
Hydraulic Connections
Reversible main coil. Connections 3/4". Air filter Class G3, easy extraction. Internal insulation Class 1 fire resistance.
Slim line 217 mm profile – integrated rectangular supply flange.
Performance Data
| Cooling capacity (7/12°C – max speed) | 11.80 kW |
| Heating capacity (70/60°C – max speed) | 25.37 kW |
| Low-temp heating (50/45°C – max speed) | 12.60 kW |
| Airflow (max speed) | 1650 m³/h |
| Centrifugal fans | n. 6 |
| Available static pressure (max speed) | 60 Pa |
| Sound power level inlet+radiated (max speed) | 62 dB(A) |
| Sound power level outlet (max speed) | 58 dB(A) |
| Power supply / Motor | Brushless EC Inverter motor with continuous 0–10V modulation. 230V~50Hz. IP20. Eurovent LCP. |
Dimensions & Weight
| Height (A) | 558 mm |
| Width (B) | 217 mm |
| Depth (C) | 2222 mm |
| Net weight | 68 kg |
Technical Features
- Horizontal or vertical installation – 2 or 4-pipe systems
- Slim line 217 mm profile – rectangular supply flange integrated in casing
- Brushless EC Inverter motor with continuous 0–100% modulation via 0–10V
- Eurovent LCP certified
- Centrifugal fans (6 units) with aerofoil profile in antistatic plastic
- Standard or enlarged coil for 2-pipe; 4-pipe versions with supplementary hot-only coil (reduced or full capacity)
- Air filter Class G3, easy extraction – removable plastic scrolls
- Internal insulation Class 1 fire resistance – IP20 – safety standards compliant
- VMF system compatible
Compatible Accessories
- Controls: TX, WMT21 (with SWAI probe)
- VMF system: VMF-E19I, VMF-E4X, VMF-E4DX, VMF-IO, VMF-LON, VMF-SW, VMF-SW1
- 3-way valves: VCF43/4324 (main coil), VCF45/4524 (hot-only)
- 2-way valves: VCFD3/324, VCFD4/424 – variable flow VJP/VJP_M
- 4-pipe kit: VCF3X4L/R – supplementary coils BV030/BV130/BV230/BV162
- Installation: AMP, BC4/BC6/BC9, DSC4, ZX7/ZX8
- Plenums & fittings: RDA_V, RDAC_V, RPA_V, RPM_V, PA_V, PM_V, RDMC_V, KFV10
- Grilles: GA/GAF (return), GM (supply), SE (outdoor air)
