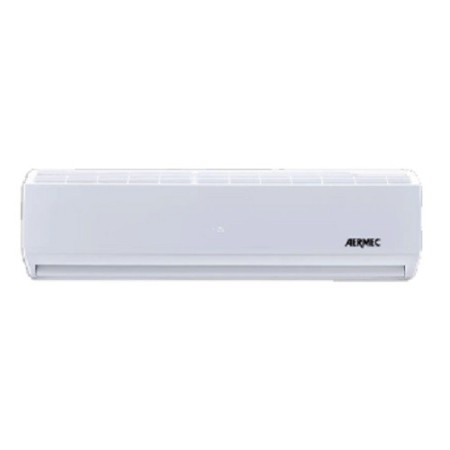

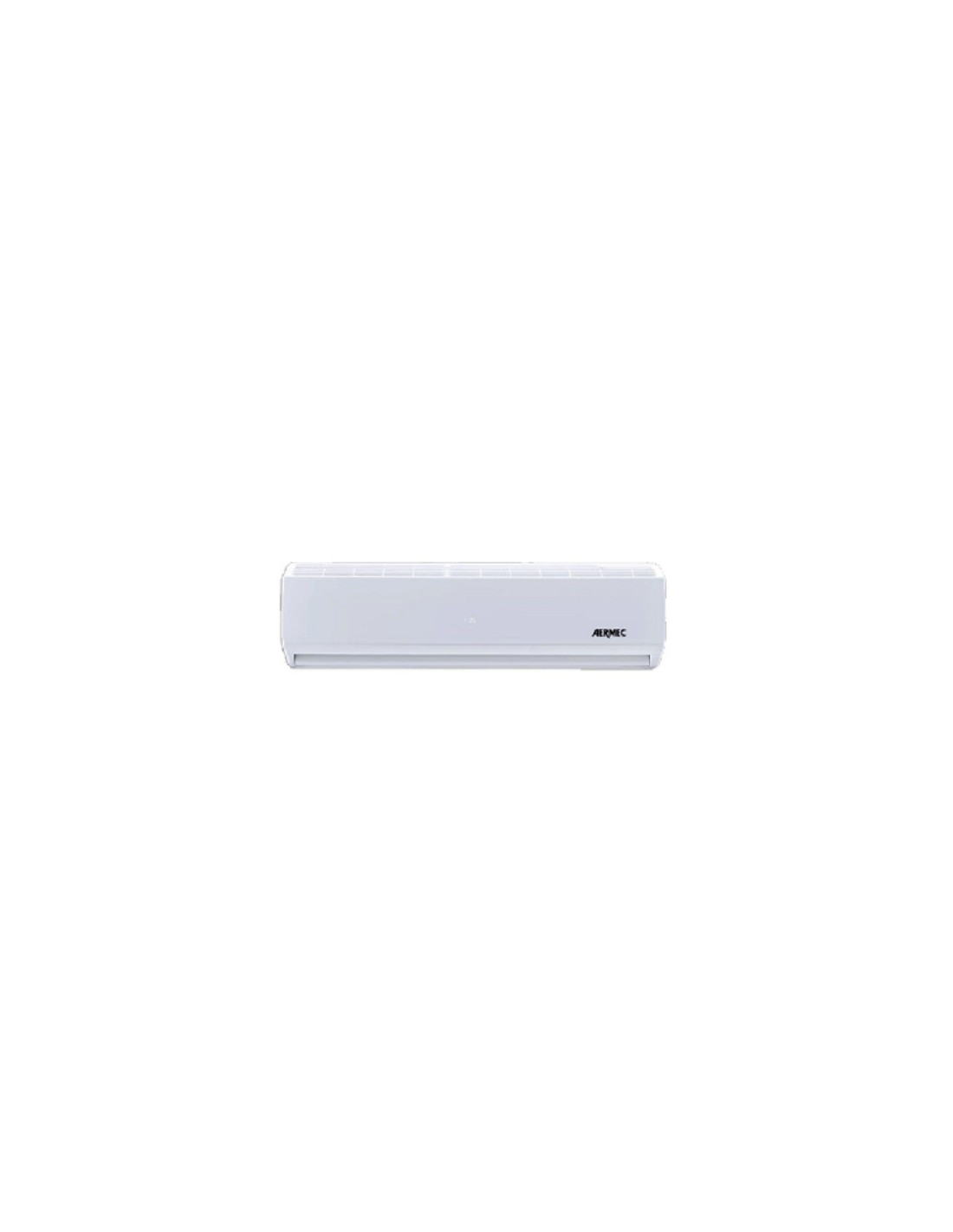

FCWI23VL inverter water fan coil unit
Aermec FCWI23VL wall fan coil unit FCWI series, size 23, without internal valve. Cooling capacity 2.27 kW, max heating capacity (70/60°C) 4.75 kW. Compact dimensions 298×880×205 mm, 9 kg. Max sound level 52 dB(A). 230V~50Hz. Eurovent certified.
Description
Aermec FCWI23VL Wall Fan Coil Unit series FCWI
The FCWI23VL fan coil unit by Aermec is the ideal hydronic terminal for wall installation in residential and light commercial applications. The flat panel design in white RAL 9010 blends seamlessly into any environment. Its compact footprint (298×880×205 mm) makes it comparable to a modern radiator.
Key Features
- High-aesthetic flat panel design, pure white RAL 9010 Pantone GRIS 1C
- Horizontally adjustable air supply vanes
- Brushless Inverter motor with continuous 0100% speed variation: up to 50% energy saving vs. traditional motor fan coils
- Motorised deflector blade for vertical air direction control: 4 fixed positions + continuous oscillation
- Ultra-quiet operation through fine motor speed regulation
- Copper tube / aluminium fin heat exchanger with female BSP 1/2" hydraulic connections
- Easy-remove, cleanable air filter
- No internal valve (direct system connection)
- Control: integrated microprocessor, compatible with TLW4 remote and PFW4 panel
- Power supply: 230V~50Hz
- Eurovent Performance certified compliant with EN 16583:15
- Cold Plasma ionizer kit compatible (accessory FCWCP)
- VMF-485LINK compatible for VMF-E5/VMF-E6 supervisors
Technical Data FCWI23VL
| Parameter | Value |
|---|---|
| Max cooling capacity (7°C/12°C, speed H) | 2.27 kW |
| Max heating capacity (70°C/60°C, speed H) | 4.75 kW |
| Max heating capacity (45°C/40°C, speed H) | 2.37 kW |
| Sound pressure level (speed H) | 52 dB(A) |
| Max power input (speed H) | 19 W |
| Dimensions A×B×C | 298×880×205 mm |
| Empty weight | 9 kg |
| Hydraulic connections | 1/2" female BSP |
| Power supply | 230V~50Hz |
| Version | without internal valve |
Compatible Accessories
TLW4 remote control (mandatory), PFW4 wired panel, Cold Plasma ionizer kit FCWCP, VMF-485LINK
