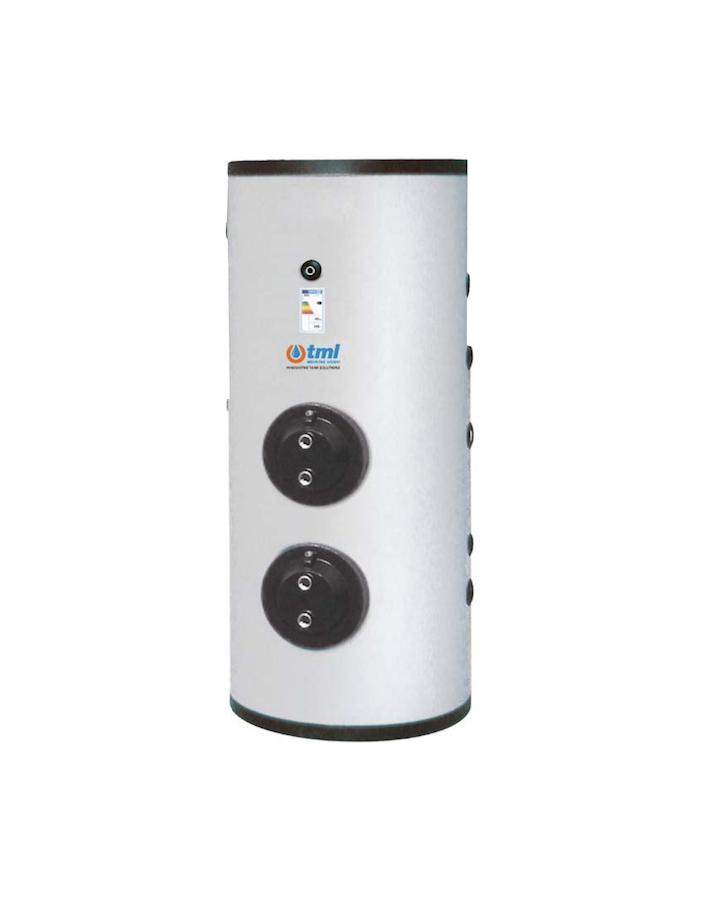

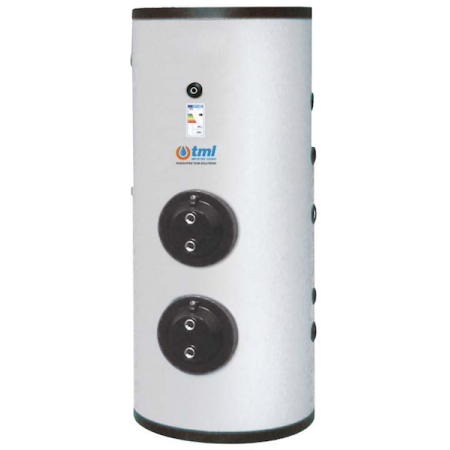

Tml BV2X05000R Kettle lt. 5000 in AISI 316L stainless steel with two removable heat exchangers with rigid insulation

TML BV2X05000R 5000Lt - Technical Data Sheet

Technical Features

• Tank material: AISI 316L stainless steel
• Internal treatment: Pickling and passivation
• Max tank pressure / temperature: 6 bar / 95°C
• Cathodic protection: Magnesium anode (electronic anode optional)
• Exchanger material: AISI 316L inox - 2 removable exchangers: lower (solar) + upper (boiler)
• Max exchanger pressure: 10 bar / 95°C
• No. of exchangers: 2
• Solar thermal ready: lower exchanger curved downward to prevent bacterial growth
• Nominal capacity: 5000 Lt
• Dimensions: Ø 1600 mm - Height 2955 mm - Weight 748 kg
• Insulation: Rigid insulation: polyurethane+PVC up to 2000L (B3) / polyester+polystyrene+PVC from 2500L (B2)
• Warranty: 5 years tank / 2 years exchanger

Standards

• PED 2014/68/UE - Art.4 Par.3
• D.M. 6 Aprile 2004 N.174
• ErP 2009/125/CE

Optional Accessories

Impressed current electronic anode, control unit, thermostat, thermometer, 1.5" electric heater element
