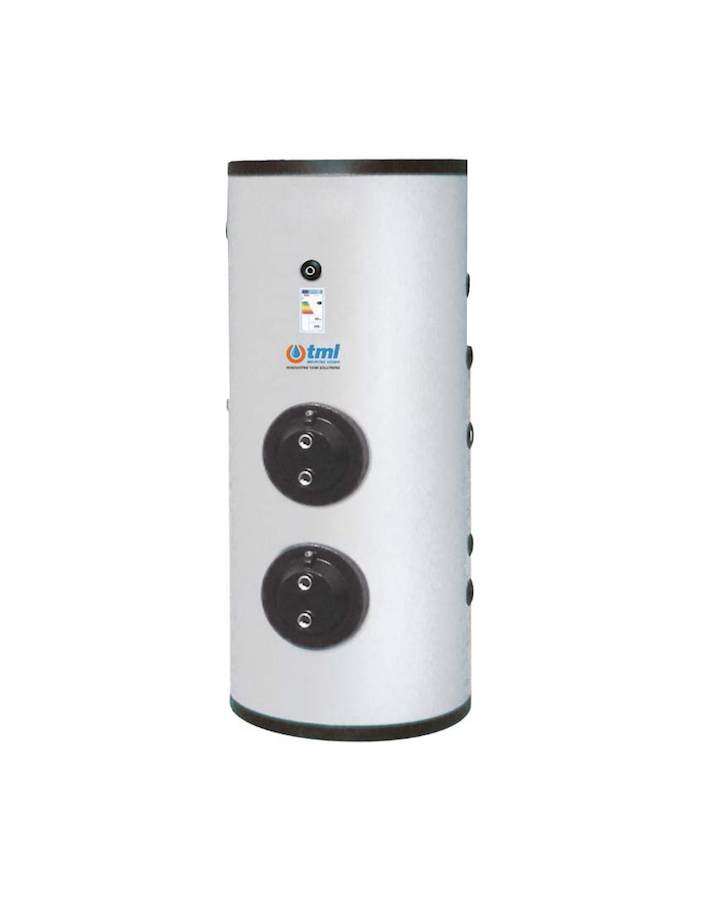

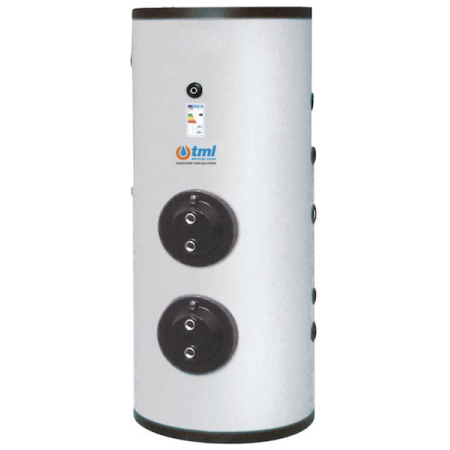

Tml BV2X00800F Kettle lt. 800 in AISI 316L stainless steel with two removable heat exchangers with flex insulation
TML BV2X00800F 800 L DHW heater - AISI 316L stainless steel - 2 removable heat exchangers - Max pressure 10 bar / 95°C, solar thermal ready - Ø 790mm H 1750mm 183kg - COIB.FLEX - 5-year warranty.
Description
TML BV2X00800F 800Lt - Technical Data Sheet
Technical Features
- Tank material: AISI 316L stainless steel
- Internal treatment: Pickling and passivation
- Max tank pressure / temperature: 6 bar / 95°C
- Cathodic protection: Magnesium anode (electronic anode optional)
- Exchanger material: AISI 316L inox - 2 removable exchangers: lower (solar) + upper (boiler)
- Max exchanger pressure: 10 bar / 95°C
- No. of exchangers: 2
- Solar thermal ready: lower exchanger curved downward to prevent bacterial growth
- Nominal capacity: 800 Lt
- Dimensions: Ø 790 mm - Height 1750 mm - Weight 183 kg
- Insulation: Flexible polyester + PVC insulation (class B2 DIN 4102)
- Warranty: 5 years tank / 2 years exchanger
Standards
- PED 2014/68/UE - Art.4 Par.3
- D.M. 6 Aprile 2004 N.174
- ErP 2009/125/CE
Optional Accessories
Impressed current electronic anode, control unit, thermostat, thermometer, 1.5" electric heater element
