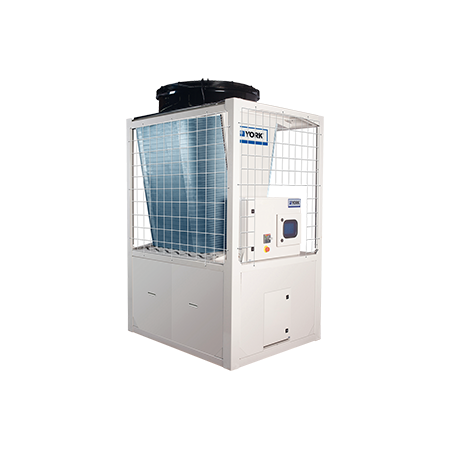

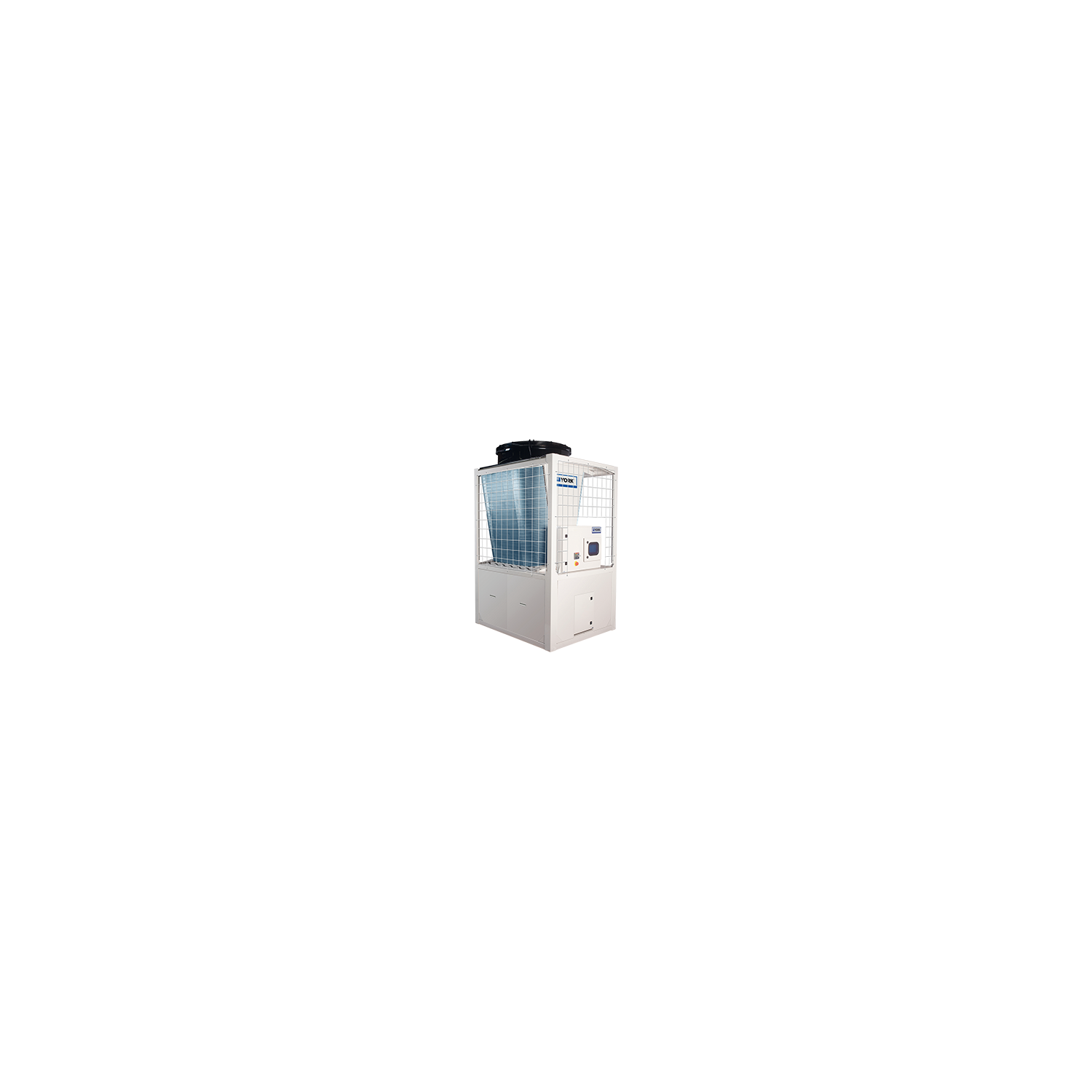

York YMPA 0065 PJ-PF Modular air/water heat pump gas R454B 60kw three phase

The machine arrives complete with:

1 x Refrigeration circuit
1
x DC Scroll
compressor
inverter 1
x Scroll compressor on/off
Plate heat exchanger
Flow switch, air bleed valve, Y-filter and temperature probes
Fixed speed circulator with maximum external pressure available up to 170 Kpa (17.5m)
Electrical heater for frost protection placed on the heat exchanger
Fan EC motor - tot.
6 m3/s, up to 50 Pa static pressure available
Neoprene vibration dampers
Double safety valve with changeover tap and refrigerant circuit shut-off taps
Gas leak detection sensors and forced safety ventilation unit
Heat exchanger coil with "U-shaped" shape,anti-corrosion protection Blue Fins

Reference YMPA 0065 PJ-PF

Last items in stock

€23,033.60 €35,990.00 -36%

Tax included

Description

Dimensions (Length x Depth x Height): 1200 x 1500 x 2440 mm
Net weight: 610 kg
Sound power level: 83 dB(A)
Water inlet and outlet hydraulic connections with Victaulic arrangement: 2"
On-board touch screen control interface and indoor remote control, languages available: EN, FR, DE, IT, ES, PL, RU, DU, SW.
Possibility of managing the unit via Modbus language and Bacnet thanks to the standard SC-EQ mounted communication board.
Heating can be done at a fixed point or following a climate curve. Possibility of cascade management with other YMPA models up to 32 units less than or equal to 130 kW, 16 units greater than 130 kW.
