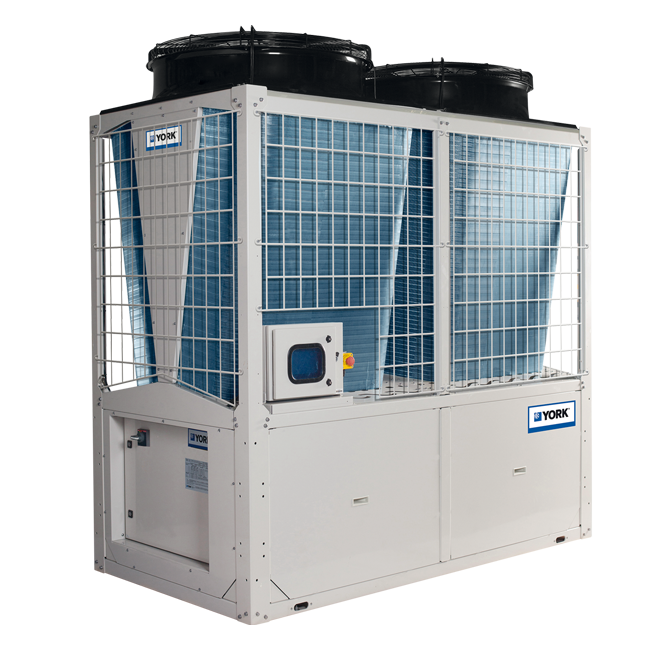

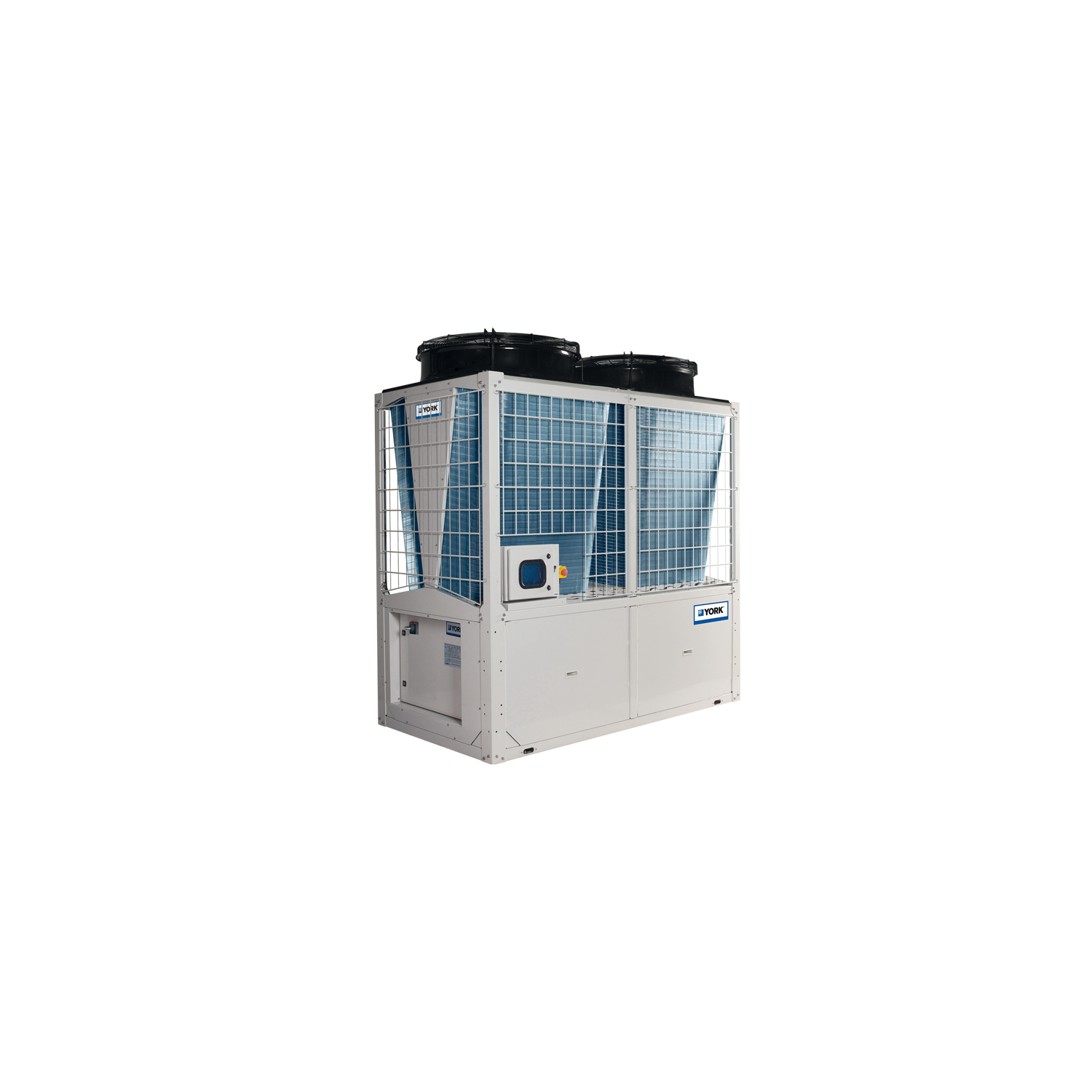

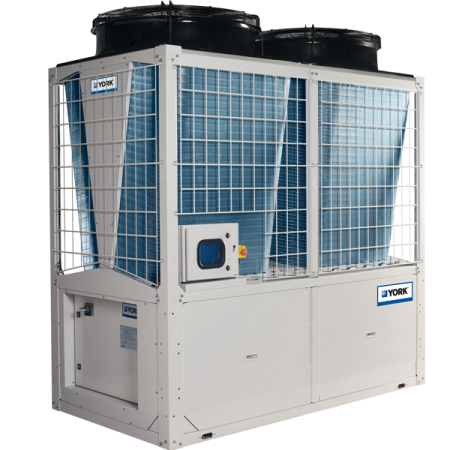

York YMPA 0100 PJ-PF Modular air/water heat pump gas R454B 103kw three phase

The machine arrives complete with:

2 x Refrigerant circuit
1
x DC Scroll inverter
compressor
2
x Scroll on/off compressor
Plate heat exchanger
Flow switch, air relief valve, Y-filter and temperature probes
Fixed speed circulator with maximum external pressure available up to 185 Kpa (19.0m)
Electric heater for frost protection located on the heat exchanger
Fan EC motor - tot.
10 m3/s, up to 50 Pa static pressure available
Neoprene vibration dampers
Double safety valve with changeover tap and refrigerant circuit shut-off taps
Gas leak detection sensors and forced safety ventilation unit
Heat exchanger coil with "U-shaped" shape,anti-corrosion protection Blue Fins

Reference YMPA 0100 PJ-PF

Last items in stock

€32,012.80 €50,020.00 -36%

Tax included

Description

Dimensions (Length x Depth x Height): 1200 x 2250 x 2440 mm
Net weight: 920 kg
Sound power level: 83 dB(A)
Water inlet and outlet hydraulic connections with Victaulic arrangement: 2-1/2"
On-board touch screen control interface and indoor remote control, languages available: EN, FR, DE, IT, ES, PL, RU, DU, SW.
Possibility of managing the unit via Modbus language and Bacnet thanks to the standard SC-EQ mounted communication board.
Heating can be done at a fixed point or following a climate curve. Possibility of cascade management with other YMPA models up to 32 units less than or equal to 130 kW, 16 units greater than 130 kW.
