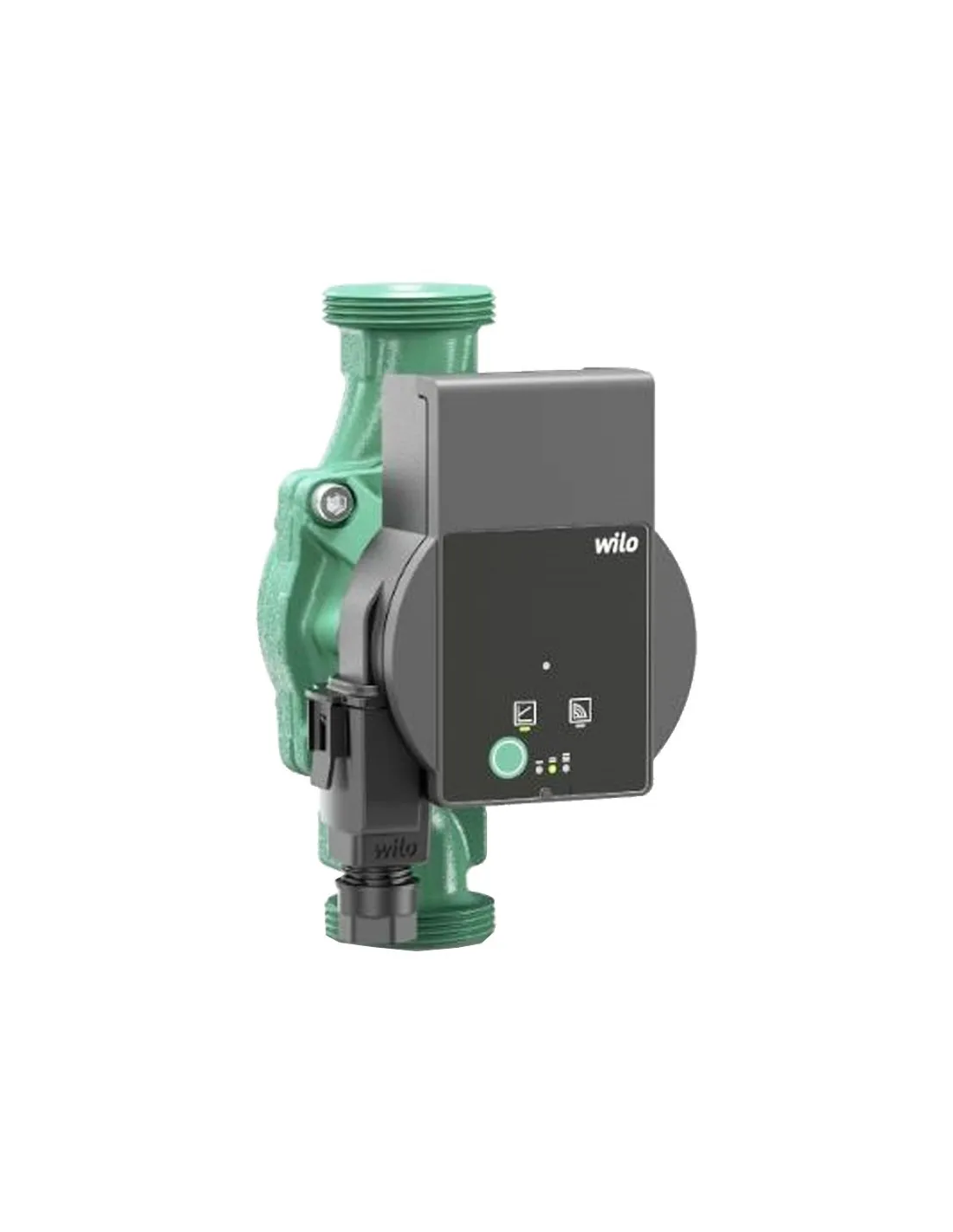

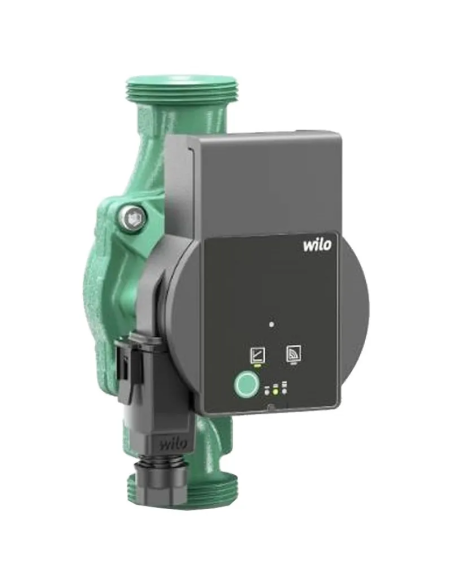

Wilo ATMOS PICO 25/1-6-130 Circulation pump 130 mm 1"1/2

Features ATMOS PICO 25/1-6-130 circulation pump:

• Wet rotor circulation pump with threaded connection
• Equipped with the most basic settings and functions, it can be put into operation very quickly and easily for heating, air-conditioning and cooling applications
• For single and two-family houses
• Integrated electronically controlled EC motor technology for modulating differential pressure control
• Quick and easy installation and replacement
• Familiar user interface
• Integrated motor saver

Circulating pump technical data:

• Maximum operating pressure PN: 10 bar
• Min / max fluid temperature: -10 °C / 95 °C
• Min / max ambient temperature: -10 °C / 40 °C
• Mains power supply:
• 1~230 V ±10%, 50/60 Hz
• Rated power P2: 30 W
• Power consumption Pmax: 40 W
• Power consumption Pmin: 4 W
• Speed min - max: 700 rpm - 4200 rpm
• Cable gland:
• 1 x PG11
• Pipe fitting on pressure and suction side: G 1"1/2 (see photo)
• Nominal fitting diameter: DN25
• Construction length: 130 mm
• Head rating range:
• 1-6 m
• Dimensions (W x D x H): 102 x 127 x 130 mm
• Electromagnetic noise emission: EN 61000-6-3
• Interference immunity: EN 61000-6-2
• Electromagnetic compatibility: EN 61800-3

Circulation pump materials:

• Pump body: Cast iron
• Impeller: PP-GF40
• Shaft: Stainless steel
• Bearing material: Metal-impregnated carbon
