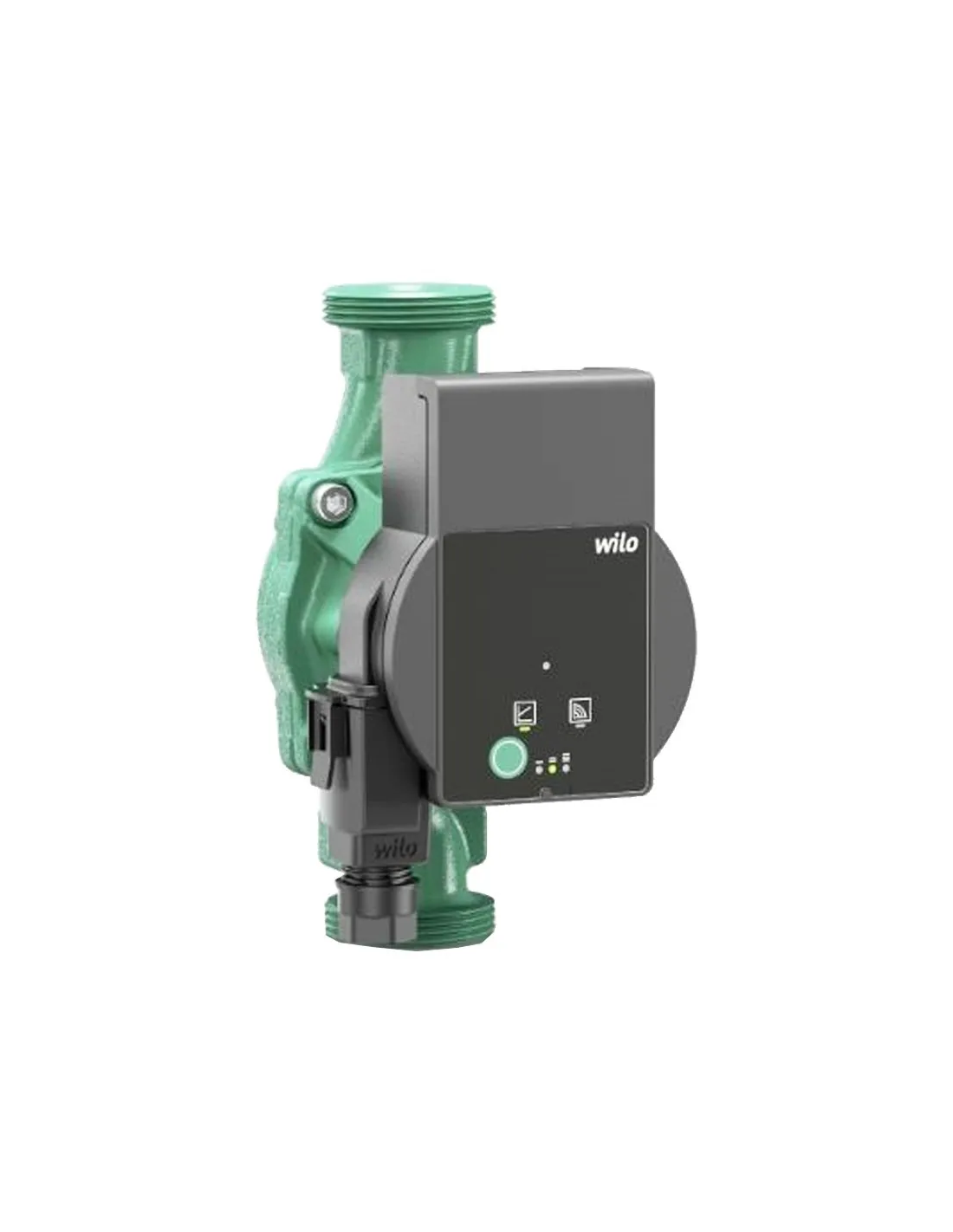

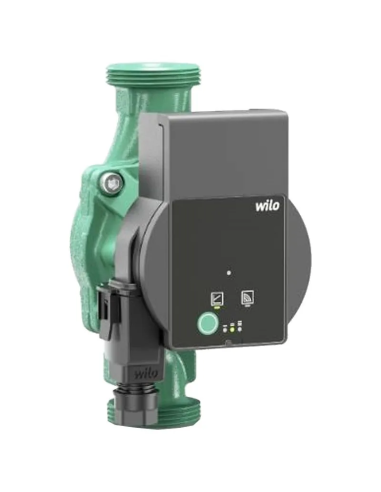

Wilo ATMOS PICO 25/1-6 Circulation pump 180 mm 1"1/2

Features Atmos PICO 25/1-6 circulation pump:

• Pump Type: Recirculation with wet rotor, maintenance-free.
• Regulation: Built-in electronic, modulating differential pressure.
• Regulation Modes: Δp-v with 3 characteristic curves, constant speed (3 stages).
• LED Indications: Regulation mode and characteristic curve.
• Power Consumption: Minimum 4 W.
• Safety Features: Built-in motor protector, automatic unlock function.

Materials:

• Body: Gray cast iron.
• Impeller: PP-GF40
• .
• Shaft: Stainless steel.
• Bearings: Metal-impregnated carbon.

Operating Data:

• Fluid Temperature: Min -10 °C, Max 95 °C.
• Ambient Temperature: Min -10 °C, Max 40 °C.
• Maximum Operating Pressure: 10 bar.

Motor Data:

• Power Supply: 1~230 V, 50/60 Hz.
• Max Absorbed Power: 40 W.
• Speed: Min 700 1/min, Max 4200 1/min.
• Motor Protection Degree: IPX2D
• .
• Hose Connector: Suction and pressure side G 1½
• .
• Construction Length: 180 mm.
• Weight: 1.8 kg.
