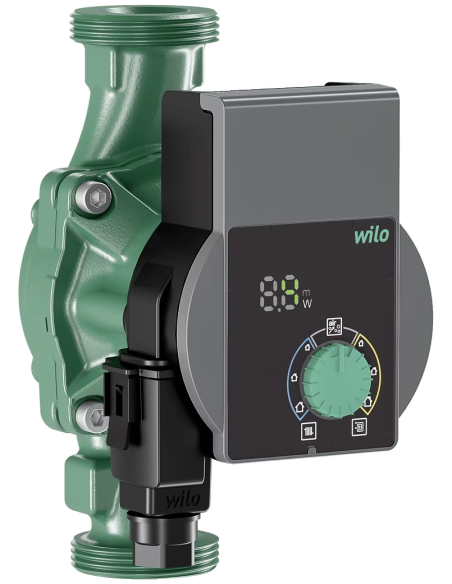

Wilo YONOS PICO1.0 25/1-6 Circulation pump 180 mm 1"1/2

Features YONOS PICO1.0 25/1-6 circulation pump:

• Max. operating pressure PN 10 bar
• Head H max 6.0 m
• Discharge Q max 3.6 m³/h
• Min. inlet height at 50 °C 0.5 m
• Min. inlet height at 95 °C 3 m
• Min. inlet height at 110 °C 10 m
• Min. fluid temperature.
• Tmin -10 °C
• Max. fluid temperature Tmax 95 °C
• Max. fluid temperature at an ambient temperature of max. +25 °C Tmax 95 °C
• Max. fluid temperature at an ambient temperature of max. +40 °C Tmax 95 °C
• Min. ambient temperature
• Tmin -10 °C
• Max. ambient temperature. Tmax 40 °C

Motor data

• Energy Efficiency Index EEI ≤0.20
• Mains supply 1~230 V ±10%, 50/60 Hz
• Rated power P2 30 W
• Min. speed nmin 700 1/min
• Max. speed
• nmax 4200 1/min
• Power consumption (min) P1 min 4 W
• Power consumption P1 max 40 W
• Electromagnetic noise emission EN 61000-6-3
• Interference immunity EN 61000-6-2
• Electromagnetic compatibility EN 61800-3
• Cable gland 1 x PG11
• Insulation class F
• Degree of protection IPX4D
• Mounting dimension
• Pipe fitting on pressure side G 1"1/2
• Pipe fitting on suction side G 1"1/2
• Construction length l0 180 mm

Materials

• Pump body Gray cast iron
• Impeller PP-GF40
• Shaft Stainless steel
• Bearing material Metal-impregnated carbon
